KSZ8091RNAIA-TR - Microchip

Description: MICROCHIP - KSZ8091RNAIA-TR - Ethernet Controller, 100 Mbps, IEEE 802.3, 3.135 V, 3.465 V, QFN, 24 Pins

Download KSZ8091RNAIA-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

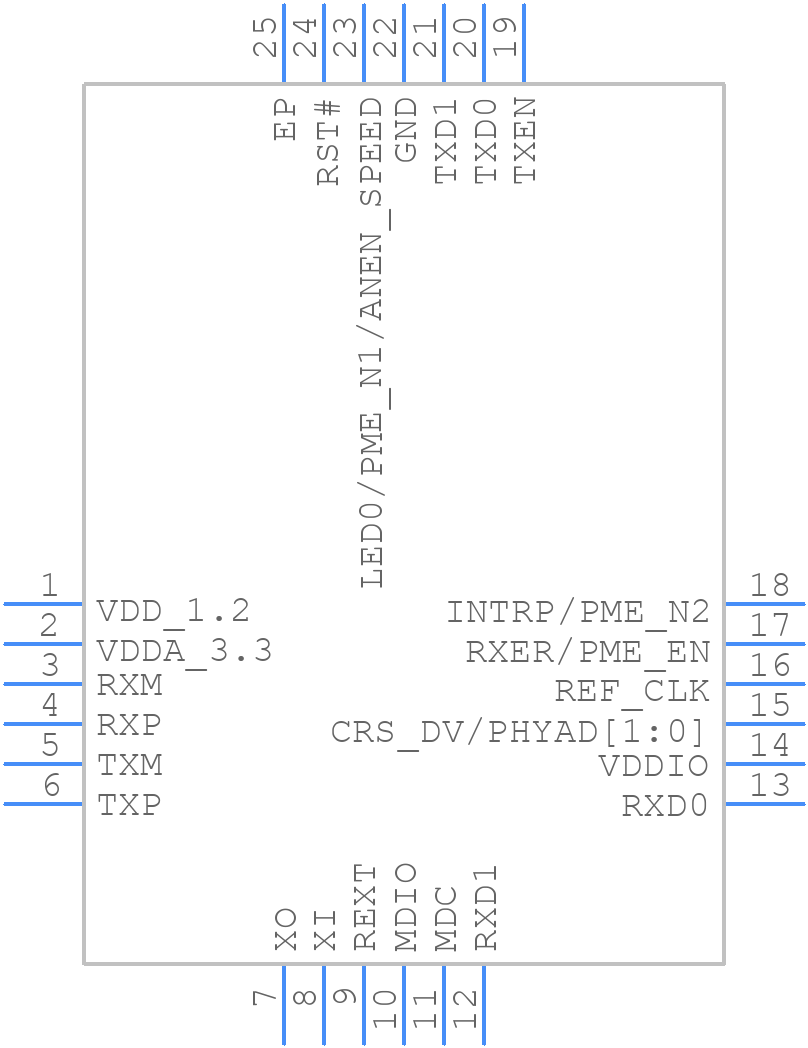

KSZ8091RNAIA-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8091RNAIA-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - KSZ8091RNAIA-TR
click to zoom
3D Models
KSZ8091RNAIA-TR - Microchip - 3D model - Quad Flat No-Lead - KSZ8091RNAIA-TR
click to zoom

KSZ8091RNAIA-TR Details

  • Manufacturer Part Number:

    KSZ8091RNAIA-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    VQFN-24

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    1 Week

  • Date Of Intro:

    2016-11-03

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

KSZ8091RNAIA-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8091RNAIA-TR can be found in the Microchip application note AN2054, which provides guidelines for PCB design, layout, and thermal considerations.
  • The KSZ8091RNAIA-TR can be configured for different network topologies using the Microchip LANCheck online tool or by consulting the device's datasheet and application notes. The tool provides a graphical interface to configure the device for specific network topologies, such as star, bus, or ring topologies.
  • The KSZ8091RNAIA-TR has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated within the recommended temperature range of -40°C to 85°C. Proper thermal design and heat sinking are crucial to prevent overheating and ensure reliable operation.
  • Troubleshooting issues with the KSZ8091RNAIA-TR can be done using a combination of tools and techniques, including logic analyzers, oscilloscopes, and diagnostic software. Microchip provides a range of resources, including application notes and FAQs, to help troubleshoot common issues.
  • The KSZ8091RNAIA-TR is designed to meet the electromagnetic interference (EMI) and electromagnetic compatibility (EMC) requirements of various regulatory bodies, including the FCC and CE. Proper PCB design, layout, and shielding are crucial to minimize EMI and ensure EMC compliance.
