KSZ8091RNDCA-TR - Microchip

Description: Ethernet ICs 10/100 Base Phy Transceiver

Download KSZ8091RNDCA-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

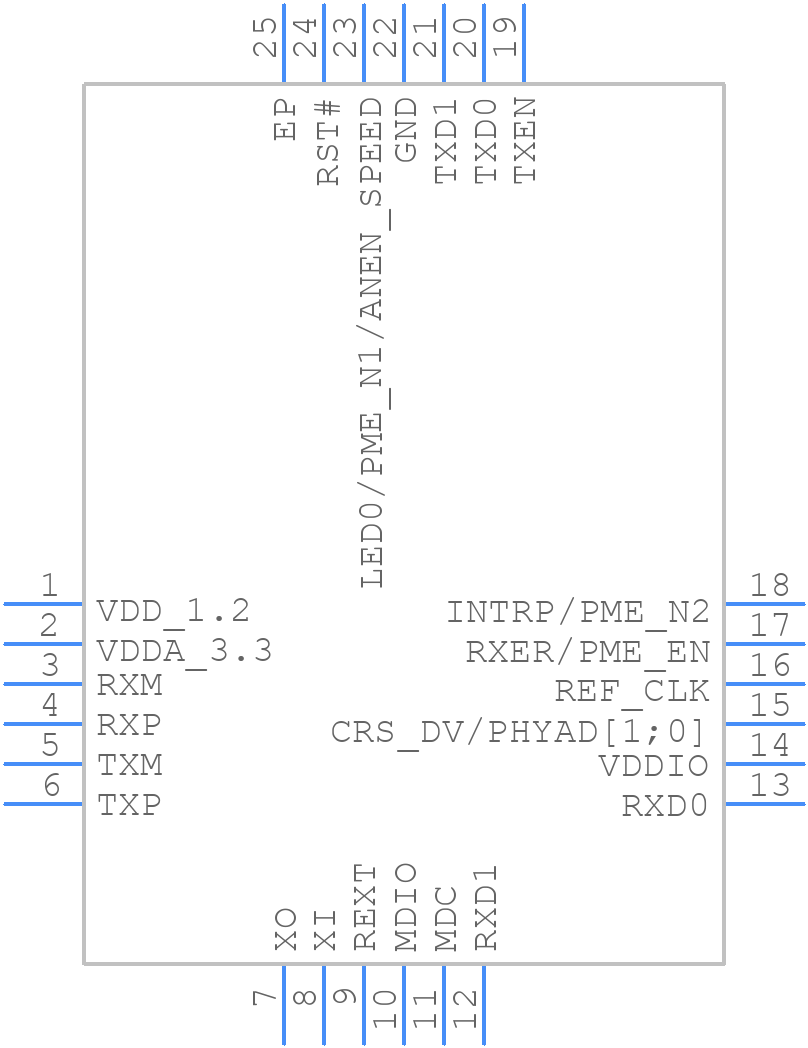

KSZ8091RNDCA-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8091RNDCA-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - KSZ8091RNDCA-TR_11
click to zoom
3D Models
KSZ8091RNDCA-TR - Microchip - 3D model - Quad Flat No-Lead - KSZ8091RNDCA-TR_11
click to zoom

KSZ8091RNDCA-TR Details

  • Manufacturer Part Number:

    KSZ8091RNDCA-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    VQFN-24

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Date Of Intro:

    2016-11-03

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

KSZ8091RNDCA-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8091RNDCA-TR can be found in the Microchip application note AN2054, which provides guidelines for designing a robust and reliable Ethernet interface.
  • The KSZ8091RNDCA-TR can be configured for half-duplex or full-duplex operation through the use of the PHY control register. The specific configuration depends on the application requirements and can be found in the datasheet or the Microchip application note AN2054.
  • The maximum cable length supported by the KSZ8091RNDCA-TR is 100 meters, which is the standard for Ethernet cables. However, the actual cable length may vary depending on the specific application and environment.
  • Troubleshooting issues with the KSZ8091RNDCA-TR typically involves checking the power supply, clock signals, and data transmission. The Microchip application note AN2054 provides guidelines for troubleshooting common issues with the KSZ8091RNDCA-TR.
  • Yes, the KSZ8091RNDCA-TR is compatible with industrial temperature ranges, operating from -40°C to 85°C. However, the device may require additional thermal management and design considerations for extreme temperature applications.
