KSZ8091RNDIA-TR - Microchip

Description: Ethernet ICs 10/100 BASE-TX Physical Layer Transceiver, EEE, WOL

Download KSZ8091RNDIA-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

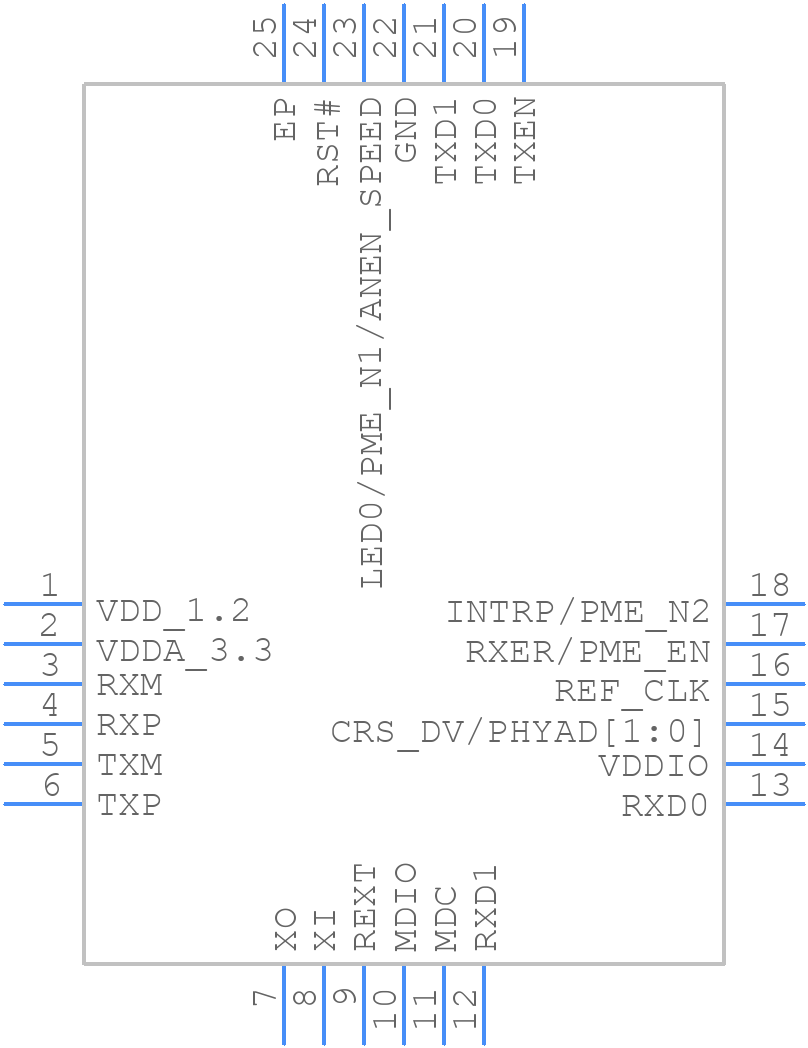

KSZ8091RNDIA-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8091RNDIA-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Lead QFN 4 mm x 4--0
click to zoom
3D Models
KSZ8091RNDIA-TR - Microchip - 3D model - Quad Flat No-Lead - 24-Lead QFN 4 mm x 4--0
click to zoom

KSZ8091RNDIA-TR Details

  • Manufacturer Part Number:

    KSZ8091RNDIA-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    VQFN-24

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Date Of Intro:

    2016-11-03

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

KSZ8091RNDIA-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8091RNDIA-TR can be found in the Microchip application note AN2054, which provides guidelines for PCB design, layout, and thermal considerations.
  • The KSZ8091RNDIA-TR can be configured for specific network topologies using the Microchip LANCheck online tool or by consulting the device's datasheet and application notes. The tool provides a graphical interface to configure the device for various network topologies, including star, bus, and ring configurations.
  • The KSZ8091RNDIA-TR has a maximum junction temperature of 150°C. To ensure reliable operation, it is recommended to keep the device's junction temperature below 125°C. Thermal management considerations include providing adequate heat sinking, using thermal vias, and ensuring good airflow around the device.
  • Troubleshooting issues with the KSZ8091RNDIA-TR can be done using a combination of tools and techniques, including using a logic analyzer to capture and analyze network traffic, checking the device's register settings, and consulting the device's datasheet and application notes.
  • The KSZ8091RNDIA-TR is designed to meet the electromagnetic interference (EMI) and electromagnetic compatibility (EMC) requirements of various regulatory bodies, including the FCC and CE. To ensure compliance, it is recommended to follow proper PCB design and layout practices, use shielding and filtering as needed, and consult the device's datasheet and application notes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8091RNDIA-TR Overview

Use the download button to access the KSZ8091RNDIA-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ80, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
