KSZ8841-PMQLI-TR - Microchip

Description: Ethernet ICs 10/100 Controller w/ 32-bit, 33MHz PCI I/F

Download KSZ8841-PMQLI-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KSZ8841-PMQLI-TR - Microchip - PCB symbol
click to zoom
PCB Footprints

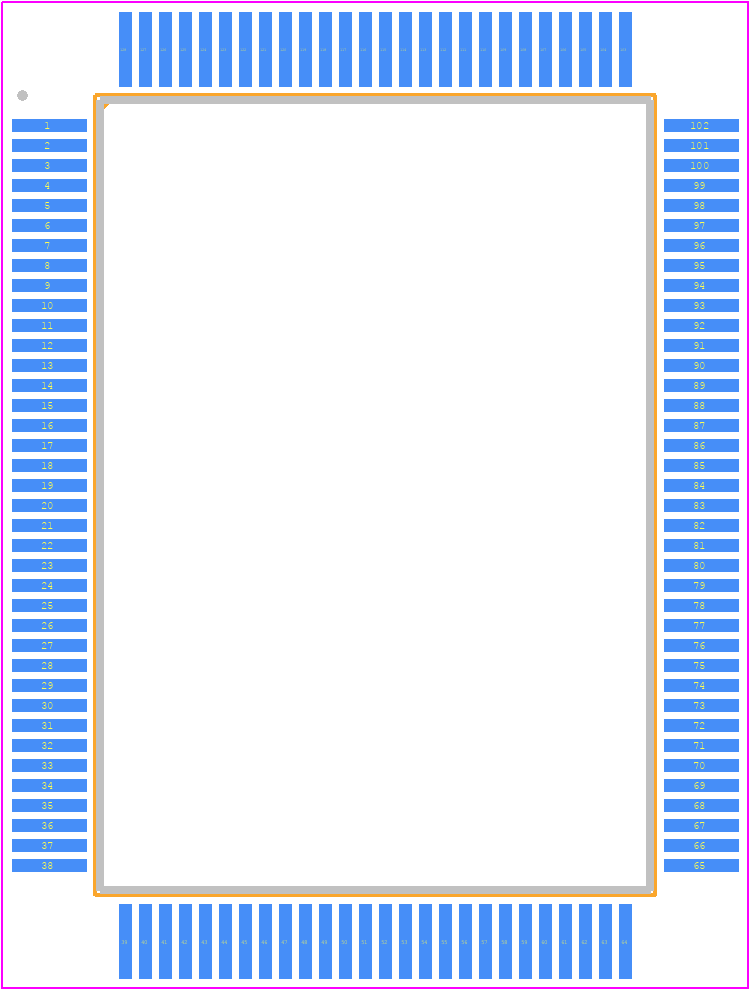

KSZ8841-PMQLI-TR - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 128-Pin PQFP(Q)
click to zoom
3D Models
KSZ8841-PMQLI-TR - Microchip - 3D model - Quad Flat Packages - 128-Pin PQFP(Q)
click to zoom

KSZ8841-PMQLI-TR Details

  • Manufacturer Part Number:

    KSZ8841-PMQLI-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    QFP-128

  • Pin Count:

    128

  • Manufacturer Package Code:

    PQFP-128

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    3

  • Address Bus Width:

    15

  • Boundary Scan:

    NO

  • Bus Compatibility:

    PCI

  • Clock Frequency-Max:

    125 MHz

  • Communication Protocol:

    ASYNC, BIT; SYNC, BYTE

  • Data Encoding/Decoding Method:

    NRZ; NRZI; BIPH-LEVEL(MANCHESTER)

  • Data Transfer Rate-Max:

    12.5 MBps

  • External Data Bus Width:

    32

  • JESD-30 Code:

    R-PQFP-G128

  • Length:

    20 mm

  • Low Power Mode:

    YES

  • Number of Serial I/Os:

    2

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP128, .7X.9, 20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK

  • Seated Height-Max:

    3.4 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, LAN

KSZ8841-PMQLI-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8841-PMQLI-TR can be found in the Microchip application note AN2054, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and signal integrity.
  • The KSZ8841-PMQLI-TR supports VLAN tagging through the use of registers 0x10-0x13. You can configure the VLAN ID, priority, and other settings by writing to these registers. Refer to the datasheet and application notes for specific register settings and programming examples.
  • The KSZ8841-PMQLI-TR supports cable lengths up to 100 meters for 1000BASE-T and 100 meters for 100BASE-TX. However, the actual cable length may vary depending on the specific application, cable quality, and environmental conditions.
  • To troubleshoot issues with the KSZ8841-PMQLI-TR, start by checking the power supply, clock, and reset signals. Verify that the device is properly configured and that the firmware is up-to-date. Use diagnostic tools such as packet sniffers and logic analyzers to identify issues with data transmission and reception. Consult the datasheet, application notes, and Microchip support resources for additional guidance.
  • While the KSZ8841-PMQLI-TR is primarily designed for Ethernet applications, it can be used in other applications that require a high-speed serial interface. However, this may require custom firmware development and may not be supported by Microchip. Consult with Microchip support or a qualified engineer to determine feasibility and potential modifications required.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8841-PMQLI-TR Overview

Use the download button to access the KSZ8841-PMQLI-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ88, or try a keyword search, such as Serial IO/Communication Controllers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
