KSZ8851SNL-TR - Microchip

Description: Ethernet CTLR Single Chip 3.1V to 3.5V 32-Pin VQFN T/R - Tape and Reel

Download KSZ8851SNL-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

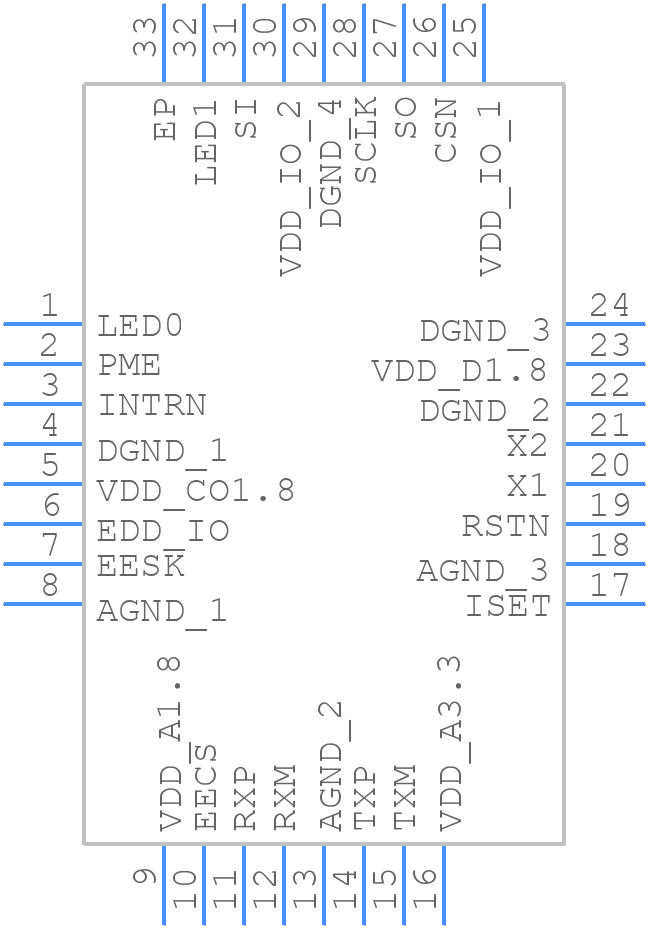

KSZ8851SNL-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8851SNL-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32 LEAD QFN 5X5mm
click to zoom
3D Models
KSZ8851SNL-TR - Microchip - 3D model - Quad Flat No-Lead - 32 LEAD QFN 5X5mm
click to zoom

KSZ8851SNL-TR Details

  • Manufacturer Part Number:

    KSZ8851SNL-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    VQFN-32

  • Country Of Origin:

    Mainland China, Thailand

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Boundary Scan:

    NO

  • Bus Compatibility:

    ETHERNET, SPI

  • Clock Frequency-Max:

    25 MHz

  • Communication Protocol:

    ETHERNET

  • Data Encoding/Decoding Method:

    NRZ

  • Data Transfer Rate-Max:

    12.5 MBps

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.5 V

  • Supply Voltage-Min:

    3.1 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, LAN

KSZ8851SNL-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8851SNL-TR can be found in the Microchip application note AN2054, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and signal integrity.
  • The KSZ8851SNL-TR can be configured for half-duplex or full-duplex operation by setting the appropriate registers. For half-duplex operation, set the HDX pin high and configure the MAC registers accordingly. For full-duplex operation, set the HDX pin low and configure the MAC registers accordingly. Refer to the datasheet and application notes for detailed configuration information.
  • The maximum cable length supported by the KSZ8851SNL-TR is 100 meters, which is the standard Ethernet cable length. However, the actual cable length may vary depending on the specific application and environment.
  • The KSZ8851SNL-TR has built-in power management features, including power-down modes and wake-up capabilities. To implement power management, refer to the datasheet and application notes for information on configuring the power management registers and using the power-down modes.
  • The KSZ8851SNL-TR has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated within the recommended temperature range, and proper thermal design and heat sinking should be implemented to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8851SNL-TR Overview

Use the download button to access the KSZ8851SNL-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ88, or try a keyword search, such as Serial IO/Communication Controllers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
