KSZ8863RLLI-TR - Microchip

Description: Ethernet Switch 3-Port 100Mbps 48-Pin LQFP T/R

Download KSZ8863RLLI-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

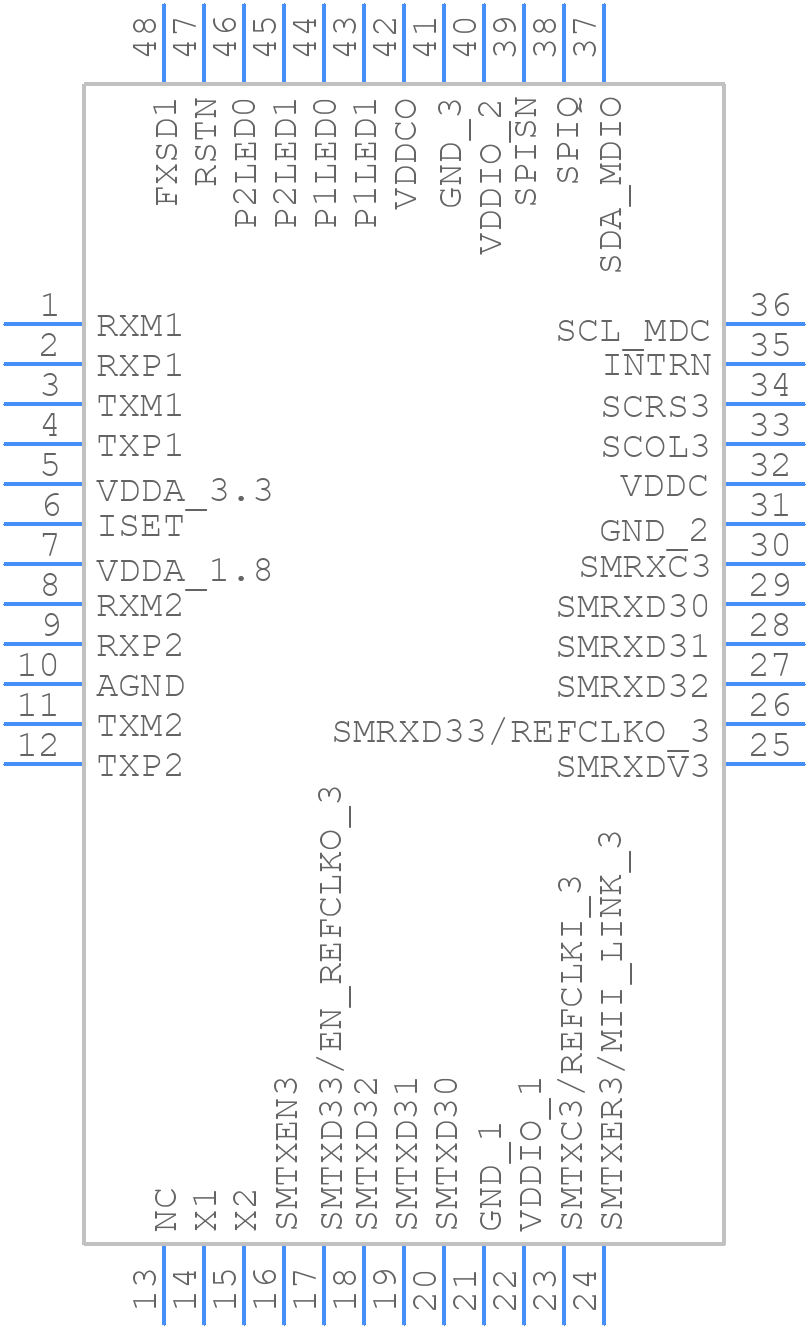

KSZ8863RLLI-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8863RLLI-TR - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - lqfp7x7-48ld-pl-1
click to zoom
3D Models
KSZ8863RLLI-TR - Microchip - 3D model - Quad Flat Packages - lqfp7x7-48ld-pl-1
click to zoom

KSZ8863RLLI-TR Details

  • Manufacturer Part Number:

    KSZ8863RLLI-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    LQFP-48

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET SWITCH

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

KSZ8863RLLI-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8863RLLI-TR is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate to minimize noise and interference.
  • To ensure reliable operation of the KSZ8863RLLI-TR in high-temperature environments, it is recommended to use a heat sink, ensure good airflow, and follow the thermal design guidelines provided in the datasheet.
  • The maximum cable length supported by the KSZ8863RLLI-TR is 100 meters, but this can vary depending on the specific application and cable quality.
  • To troubleshoot issues with the KSZ8863RLLI-TR, use a logic analyzer or oscilloscope to monitor the signals, check the power supply and clock signals, and consult the datasheet and application notes for guidance.
  • Yes, the KSZ8863RLLI-TR can be used in a redundant or backup configuration, but this requires careful design and implementation to ensure seamless switchover in case of failure.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8863RLLI-TR Overview

Use the download button to access the KSZ8863RLLI-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ88, or try a keyword search, such as Serial IO/Communication Controllers
