Part Image

KSZ8895FQXIA - Microchip

Description: Ethernet ICs 4-Port 10/100 Ethernet Switch

Download KSZ8895FQXIA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

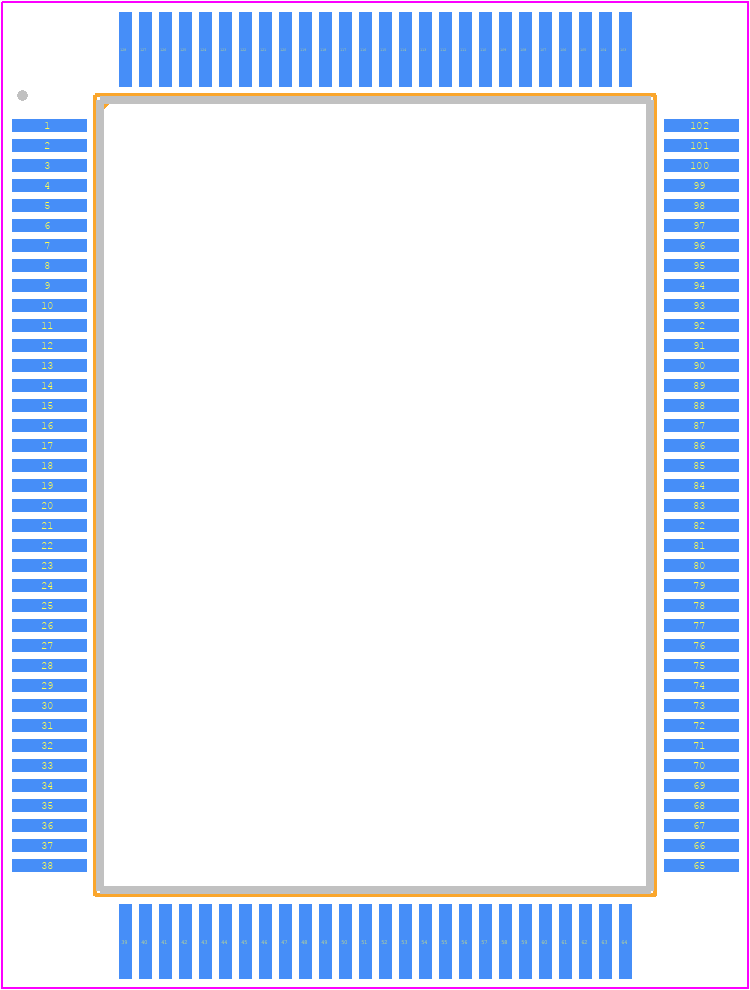

KSZ8895FQXIA - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - PQFP_128_1
click to zoom
3D Models
KSZ8895FQXIA - Microchip  - 3D model - Quad Flat Packages - PQFP_128_1
click to zoom

KSZ8895FQXIA Details

  • Manufacturer Part Number:

    KSZ8895FQXIA

  • Part Life Cycle Code:

    Active

  • Package Description:

    FQFP,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    24.92

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    R-PQFP-G128

  • JESD-609 Code:

    e3

  • Length:

    20 mm

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Number of Transceivers:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FQFP

  • Package Equivalence Code:

    QFP128,.68X.91,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK, FINE PITCH

  • Seated Height-Max:

    3.4 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET SWITCH

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8895FQXIA Overview

Use the download button to access the KSZ8895FQXIA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ88, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th

Parts related to KSZ8895FQXIA

Showing 0 results

KSZ8895FQXIA Alternates

Showing results

Image Part Number Model
Part Image KSZ8895FQXCA Microchip Technology Inc

DATACOM, ETHERNET TRANSCEIVER, PQFP128
