KSZ8895RQXC - Microchip

Description: Integrated 5-Port 10/100 Managed Ethernet Switch with MII/RMII Interface

Download KSZ8895RQXC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KSZ8895RQXC - Microchip - PCB symbol
click to zoom
PCB Footprints

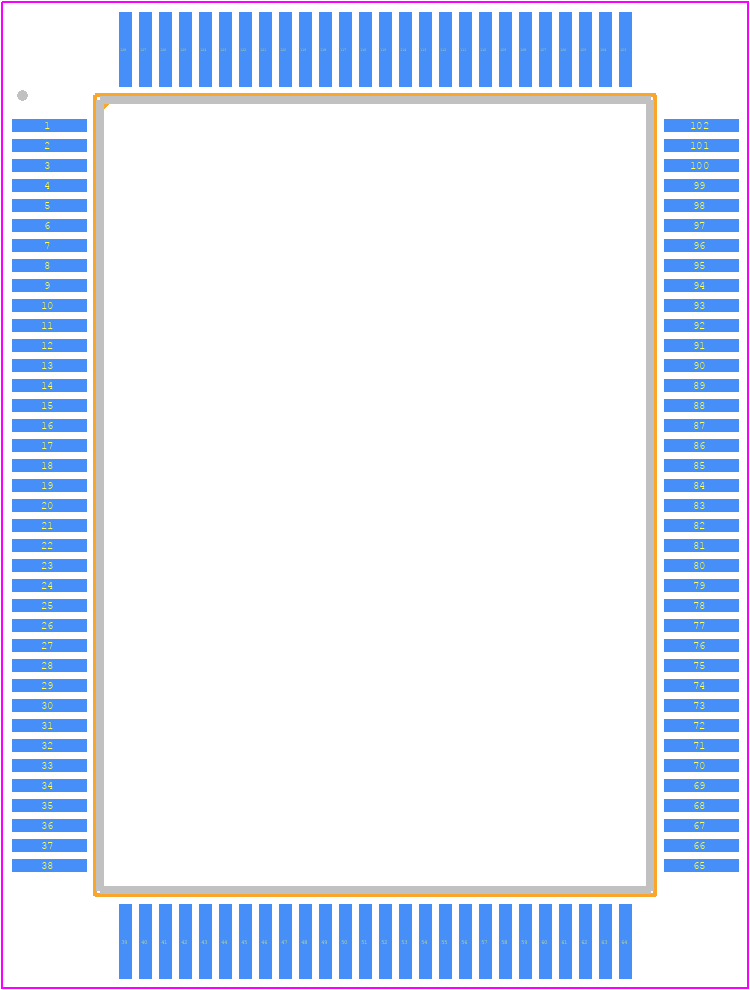

KSZ8895RQXC - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 128-Pin PQFP(Q)
click to zoom
3D Models
KSZ8895RQXC - Microchip - 3D model - Quad Flat Packages - 128-Pin PQFP(Q)
click to zoom

KSZ8895RQXC Details

  • Manufacturer Part Number:

    KSZ8895RQXC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    128

  • Manufacturer Package Code:

    PQFP-128

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    9 Weeks

  • Date Of Intro:

    2016-08-12

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    20

  • JESD-30 Code:

    R-PQFP-G128

  • JESD-609 Code:

    e3

  • Length:

    20 mm

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FQFP

  • Package Equivalence Code:

    QFP128,.68X.91,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    3.4 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET SWITCH

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    14 mm

KSZ8895RQXC Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8895RQXC is to follow a 4-layer stack-up with a solid ground plane on the bottom layer, and to keep the analog and digital signals separate to minimize noise and crosstalk.
  • The KSZ8895RQXC can be configured for a specific network topology using the SPI interface to program the device's registers. The configuration depends on the specific network topology and the desired features, such as VLAN, QoS, and IGMP snooping.
  • The maximum cable length supported by the KSZ8895RQXC is 100 meters for Cat5e or higher category cables, assuming a proper termination and a maximum transmission speed of 1 Gbps.
  • To troubleshoot issues with the KSZ8895RQXC, check the device's registers and status indicators, use a logic analyzer or oscilloscope to monitor the signals, and verify the PCB layout and component values.
  • Yes, the KSZ8895RQXC can be used in a redundant or backup network configuration, such as a ring or mesh topology, to provide fault tolerance and high availability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8895RQXC Overview

Use the download button to access the KSZ8895RQXC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ88, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
