KSZ8895RQXI-TR - Microchip

Description: Ethernet ICs 5-Port 10/100 Managed Switch w/ MII, RMII

Download KSZ8895RQXI-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KSZ8895RQXI-TR - Microchip - PCB symbol
click to zoom
PCB Footprints

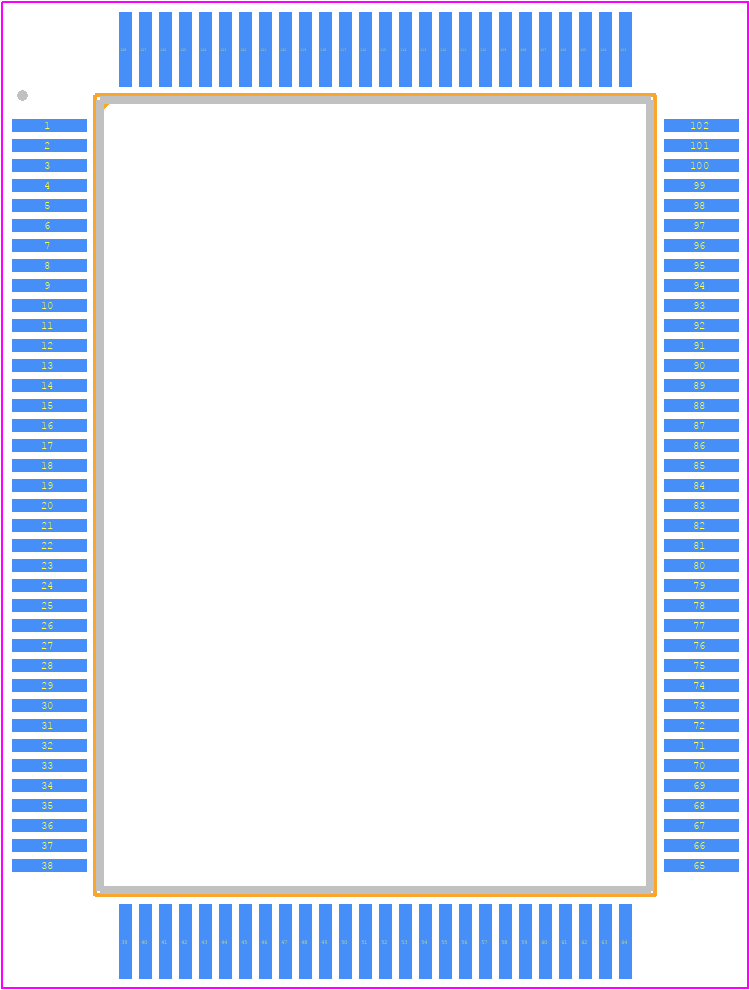

KSZ8895RQXI-TR - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 128-LEAD PQFP 14 MM X 20 MM PACKAGE
click to zoom
3D Models
KSZ8895RQXI-TR - Microchip - 3D model - Quad Flat Packages - 128-LEAD PQFP 14 MM X 20 MM PACKAGE
click to zoom

KSZ8895RQXI-TR Details

  • Manufacturer Part Number:

    KSZ8895RQXI-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FQFP, QFP128,.68X.91,20

  • Pin Count:

    128

  • Manufacturer Package Code:

    PQFP-128

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    3 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    20

  • JESD-30 Code:

    R-PQFP-G128

  • JESD-609 Code:

    e3

  • Length:

    20 mm

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FQFP

  • Package Equivalence Code:

    QFP128,.68X.91,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK, FINE PITCH

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    3.4 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET SWITCH

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

KSZ8895RQXI-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8895RQXI-TR can be found in the Microchip application note AN2054, which provides guidelines for PCB design, layout, and thermal considerations.
  • The KSZ8895RQXI-TR supports VLAN tagging through its VLAN table. To configure VLAN tagging, you need to program the VLAN table using the SPI interface. Refer to the datasheet section 5.3.4 for more information.
  • The KSZ8895RQXI-TR supports cable lengths up to 100 meters for 1000BASE-T and 100BASE-TX, and up to 200 meters for 10BASE-T. However, the actual cable length may vary depending on the cable quality and environment.
  • The KSZ8895RQXI-TR has a built-in power management feature that allows you to control the power consumption of the device. You can use the Power Down (PD) pin to put the device in low-power mode. Refer to the datasheet section 5.2.1 for more information.
  • The KSZ8895RQXI-TR has an operating temperature range of -40°C to 85°C. However, the device can be operated at temperatures up to 100°C for short periods of time during power-up or power-down sequences.
