KSZ8895RQXI - Microchip

Description: Ethernet ICs 5-Port 10/100 Managed Switch w/ MII, RMII

Download KSZ8895RQXI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KSZ8895RQXI - Microchip - PCB symbol
click to zoom
PCB Footprints

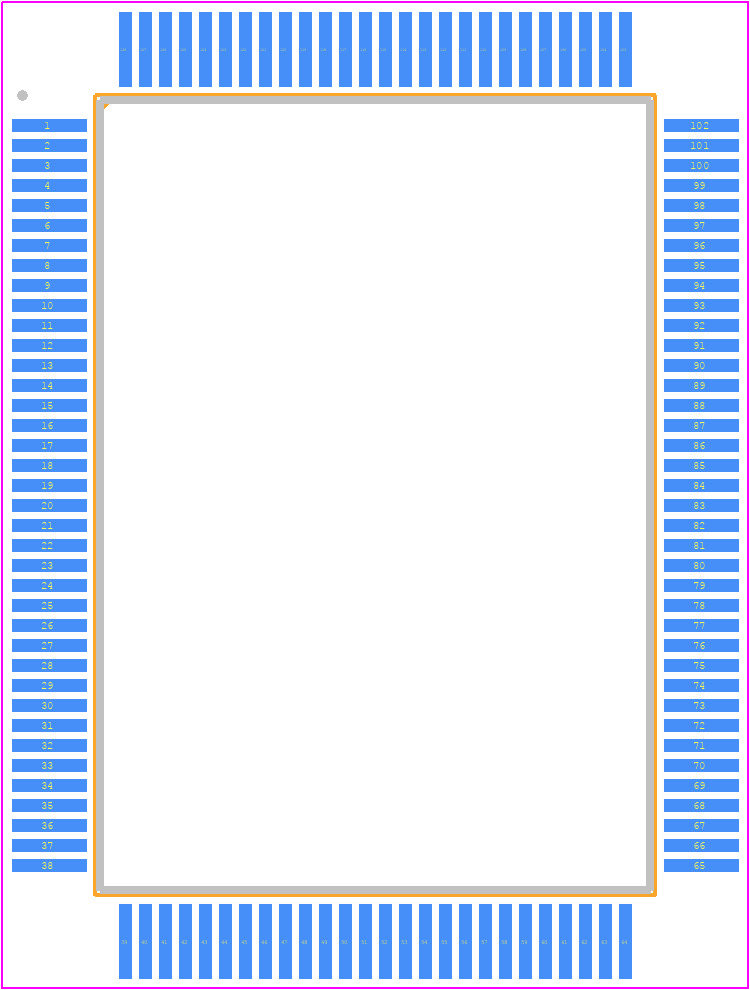

KSZ8895RQXI - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - PQFP_128_1
click to zoom
3D Models
KSZ8895RQXI - Microchip - 3D model - Quad Flat Packages - PQFP_128_1
click to zoom

KSZ8895RQXI Details

  • Manufacturer Part Number:

    KSZ8895RQXI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    128

  • Manufacturer Package Code:

    PQFP-128

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    2016-08-12

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    20

  • JESD-30 Code:

    R-PQFP-G128

  • JESD-609 Code:

    e3

  • Length:

    20 mm

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FQFP

  • Package Equivalence Code:

    QFP128,.68X.91,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK, FINE PITCH

  • Seated Height-Max:

    3.4 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET SWITCH

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

KSZ8895RQXI Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8895RQXI can be found in the Microchip application note AN2054, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and signal integrity.
  • The KSZ8895RQXI supports VLAN tagging through its VLAN table. To configure VLAN tagging, you need to program the VLAN table using the SPI interface. The VLAN table consists of 16 entries, each containing a VLAN ID, priority, and port membership. You can refer to the KSZ8895RQXI datasheet and the Microchip application note AN2055 for more information on VLAN configuration.
  • The KSZ8895RQXI supports cable lengths up to 100 meters for 1000BASE-T and 100BASE-TX, and up to 200 meters for 10BASE-T. However, the actual cable length supported may vary depending on the cable quality, noise environment, and other factors.
  • The KSZ8895RQXI has a built-in power management feature that allows you to control the power consumption of the device. You can use the Power Down (PD) pin to put the device in a low-power state. Additionally, you can use the Microchip Power Management API to control the power modes of the device.
  • The KSZ8895RQXI supports packet sizes up to 1522 bytes, which includes the Ethernet header, VLAN tag, and FCS (Frame Check Sequence). However, the actual packet size supported may vary depending on the specific application and network configuration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8895RQXI Overview

Use the download button to access the KSZ8895RQXI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ88, or try a keyword search, such as Network Interfaces
