KSZ8995MI - Microchip

Description: Ethernet ICs 5-Port 10/100 Switch w/ Transceivers & Frame Buffers

Download KSZ8995MI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KSZ8995MI - Microchip - PCB symbol
click to zoom
PCB Footprints

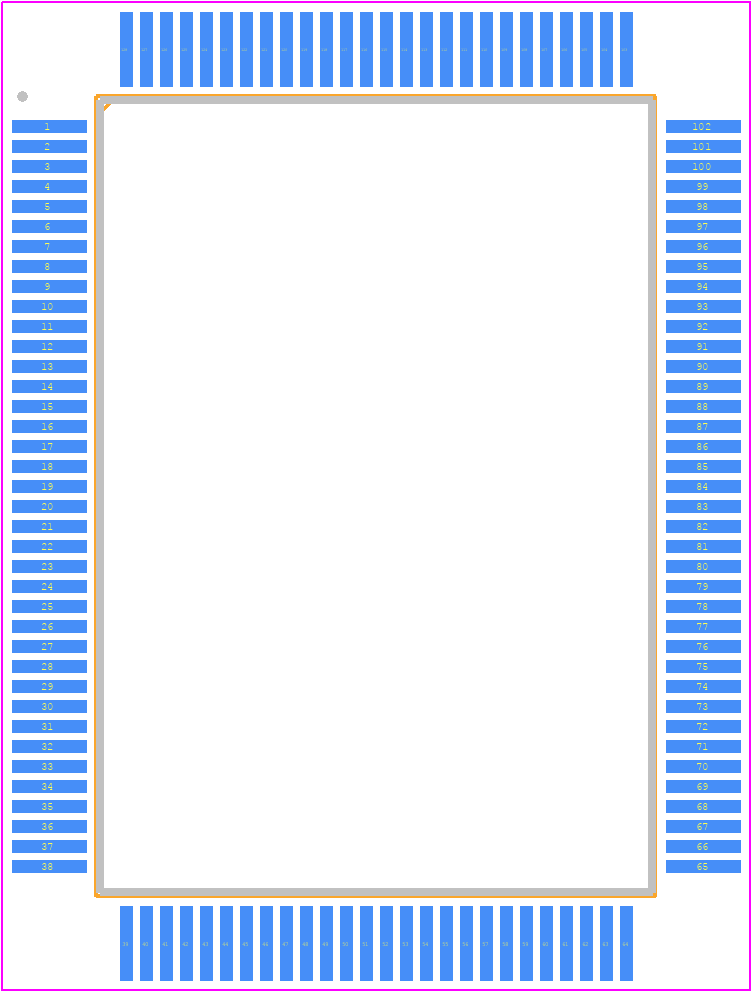

KSZ8995MI - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 128 Pin QFP
click to zoom
3D Models
KSZ8995MI - Microchip - 3D model - Quad Flat Packages - 128 Pin QFP
click to zoom

KSZ8995MI Details

  • Manufacturer Part Number:

    KSZ8995MI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, QFP-128

  • Pin Count:

    128

  • Manufacturer Package Code:

    PQFP-128

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8517.70.00.00

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • JESD-30 Code:

    R-PQFP-G128

  • JESD-609 Code:

    e3

  • Length:

    20 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FQFP

  • Package Equivalence Code:

    QFP128,.68X.91,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.4 mm

  • Supply Current-Max:

    375 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET SWITCH

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

KSZ8995MI Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8995MI is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate to minimize noise and interference.
  • The KSZ8995MI can be configured for a specific network topology using the SPI interface to program the device's registers. The specific configuration will depend on the network topology and the requirements of the application.
  • The maximum cable length supported by the KSZ8995MI is 100 meters, which is the standard for Ethernet cables. However, the actual cable length may be limited by the specific application and the quality of the cables used.
  • To troubleshoot issues with the KSZ8995MI, check the device's status registers, verify the configuration and programming of the device, and use diagnostic tools such as packet sniffers and network analyzers to identify the source of the issue.
  • Yes, the KSZ8995MI can be used in industrial or automotive applications, but it may require additional testing and validation to ensure that it meets the specific requirements of the application, such as operating temperature range and electromagnetic compatibility.
