Part Image

KSZ9031RNXCA - Microchip

Description: Ethernet PHY 10/100/1000Mbps RGMII QFN48 Micrel KSZ9031RNXCA Ethernet Controller 1.8 V, 2.5 V, 3.3 V QFN, 48-Pin

Download KSZ9031RNXCA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

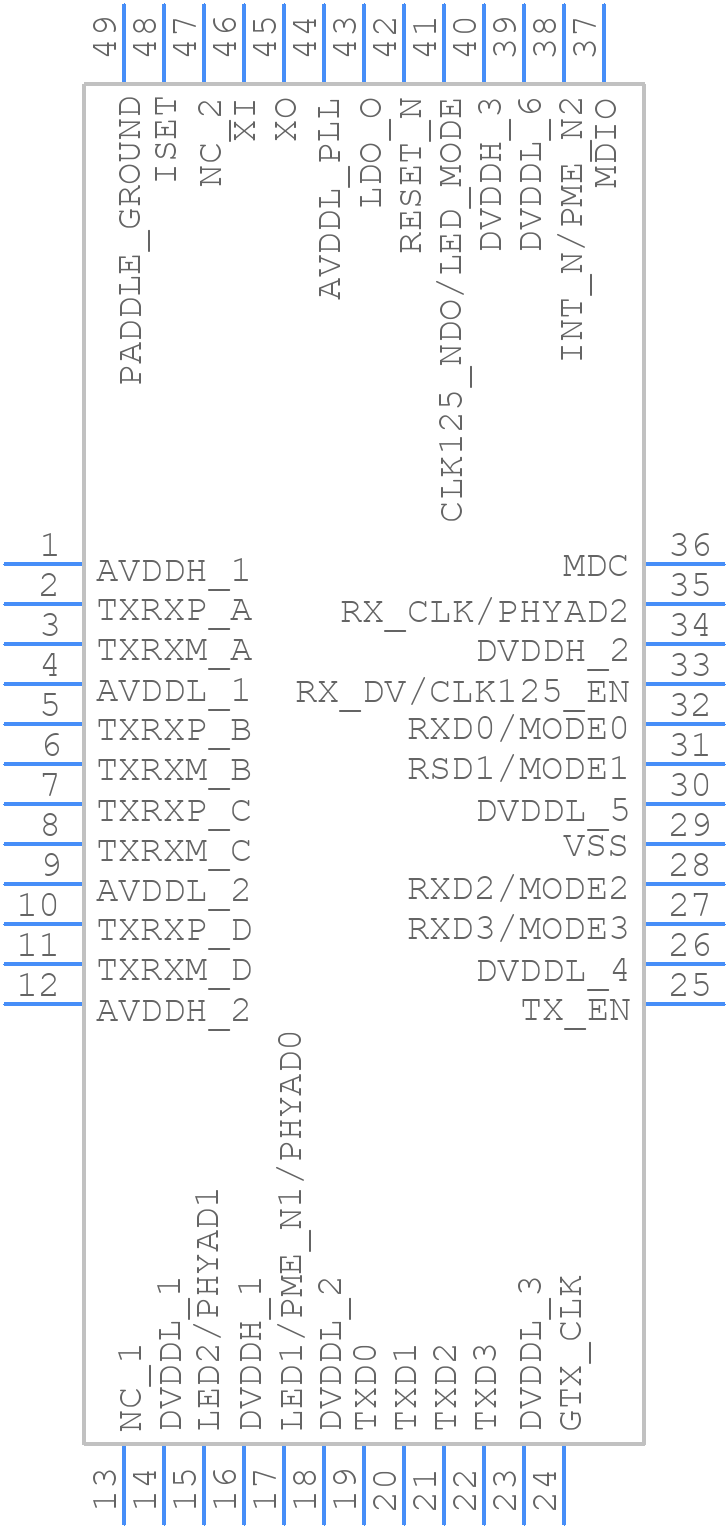

Symbol
KSZ9031RNXCA - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ9031RNXCA - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-Pin (7mm x 7mm) QFN
click to zoom
3D Models
KSZ9031RNXCA - Microchip - 3D model - Quad Flat No-Lead - 48-Pin (7mm x 7mm) QFN
click to zoom

KSZ9031RNXCA Details

  • Manufacturer Part Number:

    KSZ9031RNXCA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    48

  • Manufacturer Package Code:

    VQFN-48

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8517.70.00.00

  • Factory Lead Time:

    6 Weeks

  • Date Of Intro:

    2016-03-14

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Data Rate:

    1000000 Mbps

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

KSZ9031RNXCA Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ9031RNXCA is to follow a 4-layer stack-up with a solid ground plane on the bottom layer, and to keep the analog and digital signals separate to minimize noise and crosstalk.
  • The KSZ9031RNXCA can be configured for a specific network topology using the Microchip LANCheck online tool or by using the Microchip MPLAB X IDE software. The tool or software provides a graphical user interface to configure the device's registers and settings for a specific network topology.
  • The KSZ9031RNXCA supports cable lengths up to 100 meters for 1000BASE-T and 100BASE-TX, and up to 200 meters for 10BASE-T, assuming a Category 5e or higher cable is used.
  • To troubleshoot issues with the KSZ9031RNXCA, check the device's status registers and interrupt flags, use a logic analyzer or oscilloscope to monitor the device's signals, and consult the Microchip documentation and application notes for troubleshooting guidelines.
  • Yes, the KSZ9031RNXCA is suitable for industrial and automotive applications due to its operating temperature range of -40°C to 125°C and its compliance with relevant industry standards such as IEEE 802.3 and IEC 61000-4-2.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ9031RNXCA Overview

Use the download button to access the KSZ9031RNXCA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ90, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
