Part Image

KSZ9131RNXI-TR - Microchip

Description: Ethernet ICs Gigabit Ethernet Transceiver with RGMII support

Download KSZ9131RNXI-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

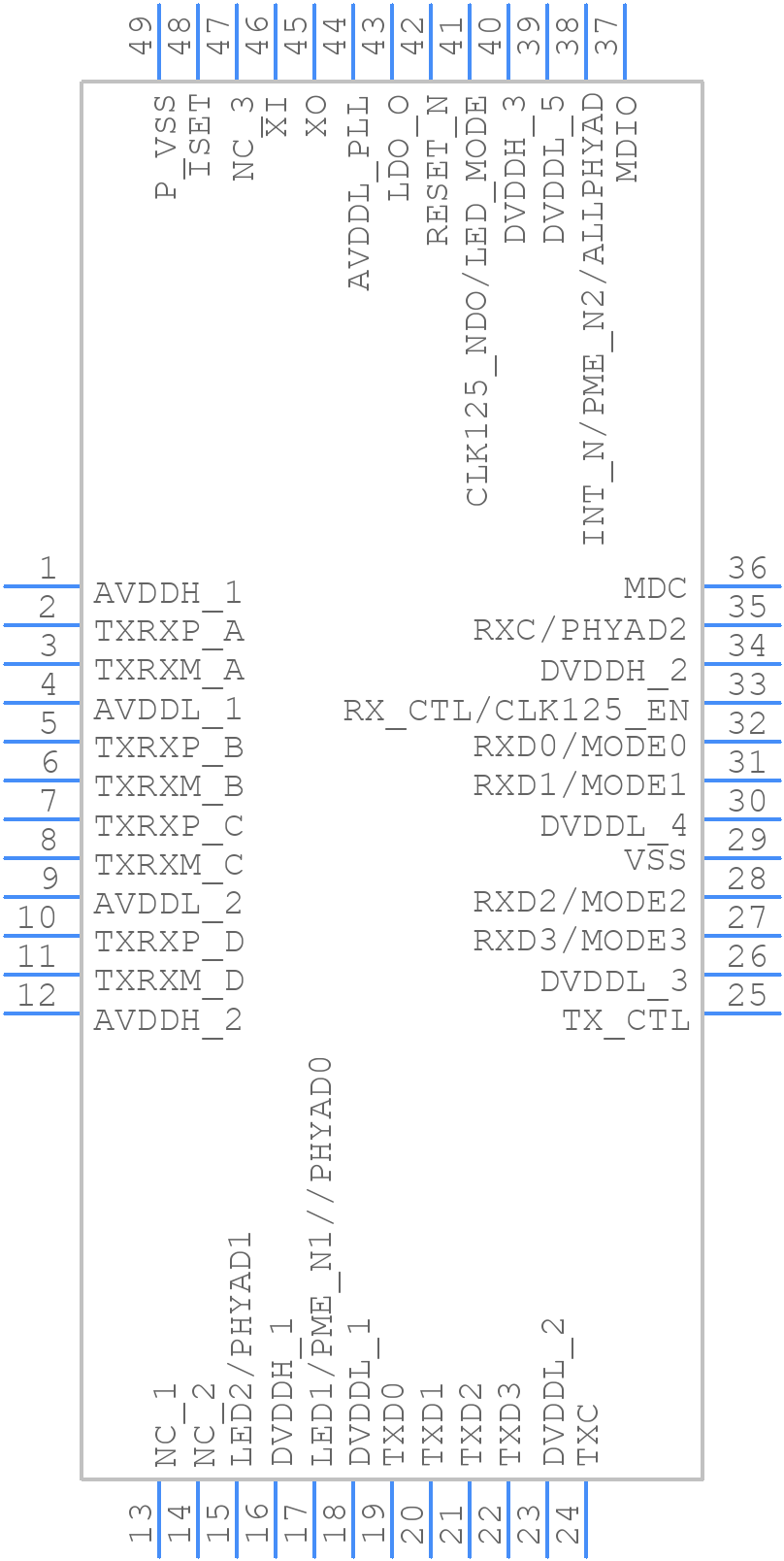

KSZ9131RNXI-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ9131RNXI-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-LEAD QFN 7 MM X 7 MM PACKAGE_2025
click to zoom
3D Models
KSZ9131RNXI-TR - Microchip - 3D model - Quad Flat No-Lead - 48-LEAD QFN 7 MM X 7 MM PACKAGE_2025
click to zoom

KSZ9131RNXI-TR Details

  • Manufacturer Part Number:

    KSZ9131RNXI-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    48

  • Manufacturer Package Code:

    VQFN-48

  • Country Of Origin:

    Mainland China, Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    14 Weeks

  • Date Of Intro:

    2019-10-09

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Data Rate:

    1000000 Mbps

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.28SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

KSZ9131RNXI-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ9131RNXI-TR can be found in the Microchip application note AN-2054, which provides guidelines for PCB design, layout, and thermal considerations.
  • The KSZ9131RNXI-TR supports VLAN tagging through the use of registers 0x10-0x13. Consult the datasheet and the Microchip application note AN-2055 for detailed configuration instructions.
  • The KSZ9131RNXI-TR supports cable lengths up to 100 meters, depending on the specific application and cable type. Consult the datasheet and relevant industry standards for more information.
  • The KSZ9131RNXI-TR has built-in power management features, including power-down modes and wake-up capabilities. Consult the datasheet and the Microchip application note AN-2056 for detailed information on implementing power management.
  • The KSZ9131RNXI-TR has a maximum junction temperature of 125°C. Ensure proper thermal design and heat dissipation to prevent overheating. Consult the datasheet and the Microchip application note AN-2054 for thermal design guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ9131RNXI-TR Overview

Use the download button to access the KSZ9131RNXI-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ91, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
