KSZ9131RNXU-VAO - Microchip

Description: Automotive Gigabit Ethernet Transceiver with RGMII Support

Download KSZ9131RNXU-VAO Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

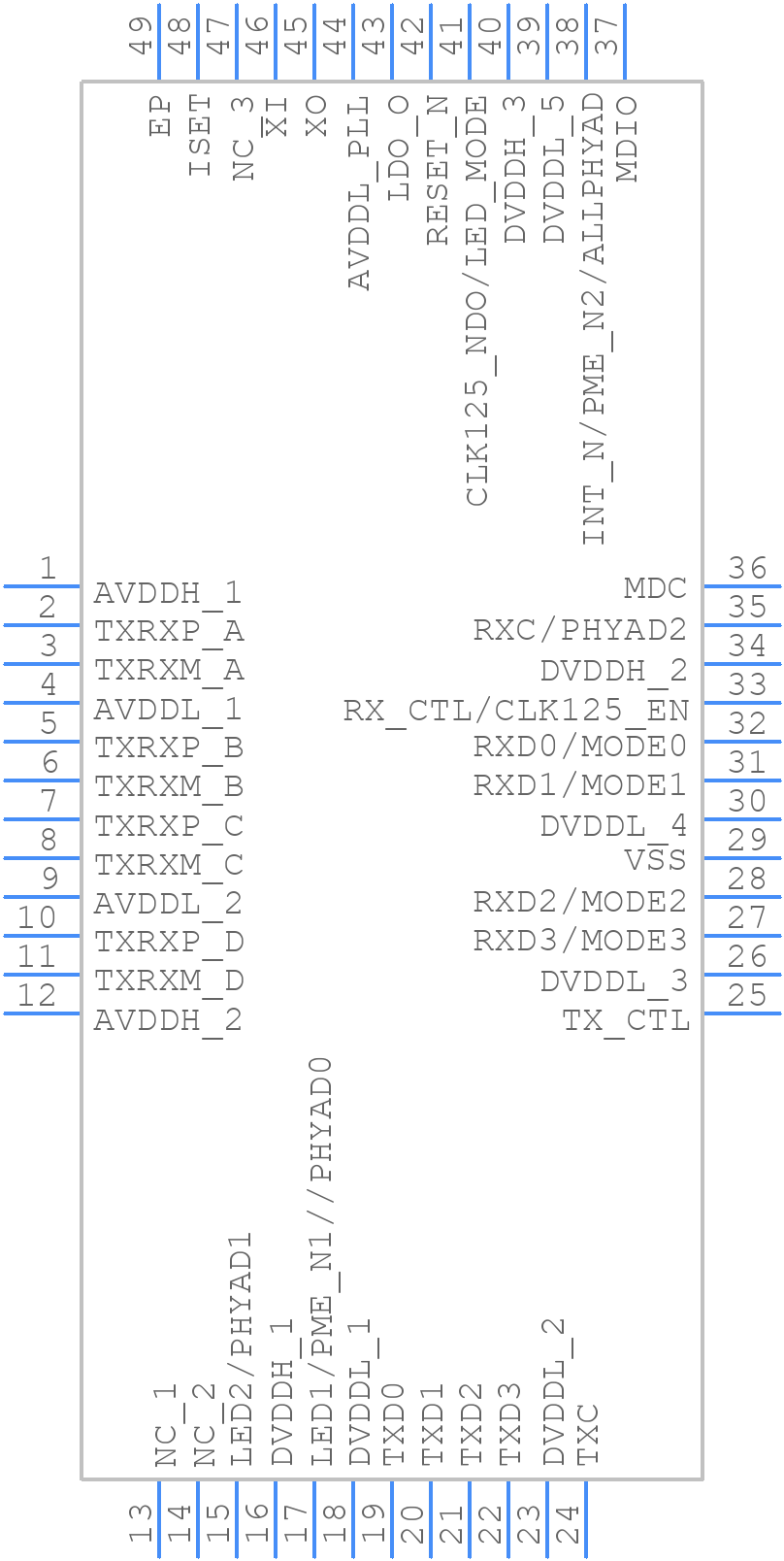

KSZ9131RNXU-VAO - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ9131RNXU-VAO - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VQFN48_7X7(Wettable flank) with 5.0+5x5.05mm
click to zoom
3D Models
KSZ9131RNXU-VAO - Microchip - 3D model - Quad Flat No-Lead - VQFN48_7X7(Wettable flank) with 5.0+5x5.05mm
click to zoom

KSZ9131RNXU-VAO Details

  • Manufacturer Part Number:

    KSZ9131RNXU-VAO

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    48

  • Manufacturer Package Code:

    VQFN-48

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    14 Weeks

  • Date Of Intro:

    2019-10-09

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Data Rate:

    1000000 Mbps

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.28SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100; TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

KSZ9131RNXU-VAO Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout guide in the KSZ9131RNXU-VAO evaluation board user's guide, which can be found on the Microchip website. It's essential to follow this guide to ensure proper signal integrity and thermal management.
  • The KSZ9131RNXU-VAO can be configured using the Microchip LANCheck online tool or the KSZ9131RNXU-VAO evaluation board GUI software. These tools provide a user-friendly interface to configure the device for various network settings, such as VLAN, QoS, and PHY settings.
  • The KSZ9131RNXU-VAO supports cable lengths up to 100 meters, as per the IEEE 802.3 standard. However, the actual cable length may vary depending on the specific cable type, quality, and environmental conditions.
  • Yes, the KSZ9131RNXU-VAO is rated for industrial temperature ranges from -40°C to 85°C. However, it's essential to ensure proper thermal management and design considerations to maintain reliability and performance in extreme temperature environments.
  • Microchip provides a range of troubleshooting resources, including application notes, FAQs, and technical support. Engineers can also use the KSZ9131RNXU-VAO evaluation board GUI software to monitor and debug the device. Additionally, Microchip recommends using oscilloscopes and logic analyzers to debug signal integrity issues.
