A good PCB layout for the KTA1137AEUAB-TR involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the KTA1137AEUAB-TR operates within its recommended operating conditions, monitor the input voltage, output current, and junction temperature. Implement thermal management, such as heat sinks or thermal pads, to keep the junction temperature below 125°C.
The KTA1137AEUAB-TR has built-in ESD protection, but additional measures can be taken, such as using ESD protection diodes, TVS diodes, or ESD-protected connectors. For latch-up prevention, ensure the device is powered up and down slowly, and use a power-on reset circuit to prevent voltage spikes.
The KTA1137AEUAB-TR is rated for industrial temperature range (-40°C to 85°C). For high-reliability or high-temperature applications, consider using a device with a wider operating temperature range or a higher reliability rating, such as automotive or aerospace-grade devices.
To troubleshoot issues with the KTA1137AEUAB-TR, check the input voltage, output load, and PCB layout. Verify that the device is operated within its recommended operating conditions. Use oscilloscopes or logic analyzers to monitor the output voltage and current. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KTA1137AEUAB-TR Overview

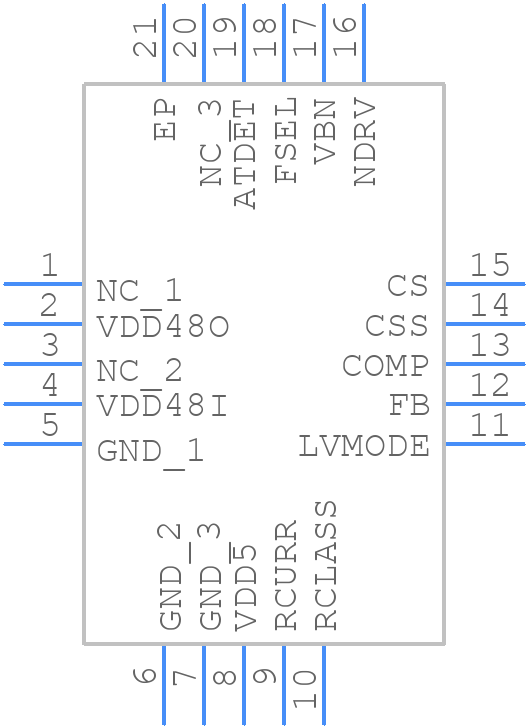

Use the download button to access the KTA1137AEUAB-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KTA11,
or try a keyword search, such as Power Management Circuits
