KTDM8G4B832BGCBCT - SMARTsemi

Description: 8Gb DDR4 SDRAM 1Gbx8 78-FBGA Industrial Temp

Download KTDM8G4B832BGCBCT Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this KTDM8G4B832BGCBCT model

Email notifications will be applied after download.

Send part feedback

Symbol

KTDM8G4B832BGCBCT - SMARTsemi - PCB symbol

PCB Footprints

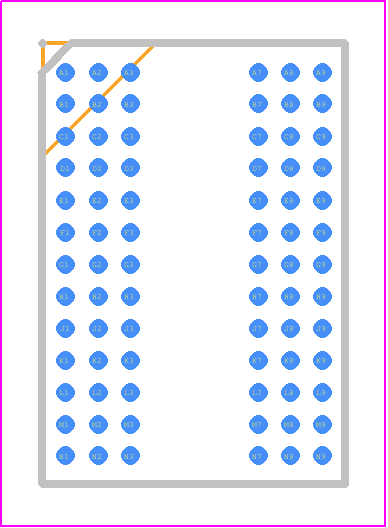

KTDM8G4B832BGCBCT - SMARTsemi PCB footprint - BGA - BGA - 78-BALL (7.5x11.0 mm)

3D Models

KTDM8G4B832BGCBCT - SMARTsemi - 3D model - BGA - 78-BALL (7.5x11.0 mm)

Datasheet Download Datasheet
Stock & Prices Price & Stock for KTDM8G4B832BGCBCT
Part Number KTDM8G4B832BGCBCT
Manufacturer SMARTsemi
Pin Count 78
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 78-BALL (7.5x11.0 mm)
Released Date Aug 10, 2022
Last Modified Date Aug 21, 2023 6:26 PM UTC
Pinout / Pin List Click Here (Member Only)

KTDM8G4B832BGCBCT Details

Manufacturer Part Number:
KTDM8G4B832BGCBCT
Manufacturer:
SmartSemi

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

KTDM8G4B832BGCBCT Overview

Use the download button to access the KTDM8G4B832BGCBCT schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like KTDM8, or try a keyword search, such as DRAMs
