KTU1120EGAB-TA - Kinetic Technologies

Description: Over-Voltage Protection 24VDC Tolerance on CC1/2, SBU1/2 CC1/2 OVP = 5.8V SBU1/2 OVP = 3.83V Ultra-Fast 15ns Response Time IEC61000-4-5 Surge Protection ±40V Surge Tolerance on CC1/2 ±30V Surge Tolerance on SBU1/2 IEC61000-4-2 ESD Protection ±15kV air gap on CC1/2, SBU1/2 ±8kV contact on CC1/2, SBU1/2 ±2kV HBM on all pins (JEDEC JS-001-2017) CC Switches: 1.25A, 270mΩ, 40pF, 140MHz Automatic 5.1kΩ dead battery pull-down SBU Switches: 3Ω, 11pF, 800MHz 2.5V to 5.5V Operating S

Download KTU1120EGAB-TA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this KTU1120EGAB-TA model

Email notifications will be applied after download.

Send part feedback

Symbol

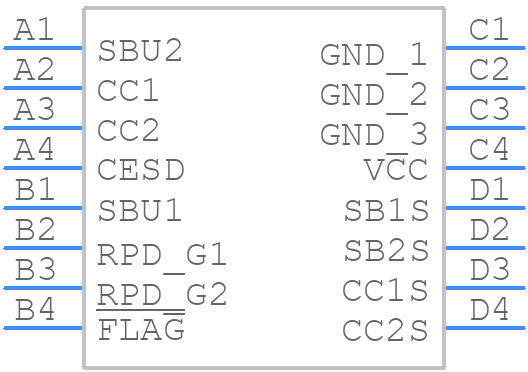

KTU1120EGAB-TA - Kinetic Technologies - PCB symbol

PCB Footprints

KTU1120EGAB-TA - Kinetic Technologies PCB footprint - BGA - BGA - WLCSP44-16 (1.700mm x 1.700mm x 0.620mm).

3D Models

KTU1120EGAB-TA - Kinetic Technologies - 3D model - BGA - WLCSP44-16 (1.700mm x 1.700mm x 0.620mm).

Datasheet Download Datasheet
Stock & Prices Price & Stock for KTU1120EGAB-TA
Part Number KTU1120EGAB-TA
Manufacturer Kinetic Technologies
Pin Count 16
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - WLCSP44-16 (1.700mm x 1.700mm x 0.620mm).
Released Date Sep 9, 2025
