KW1-1501ASA - Luckylight

Description: Display: LED; 7-segment; 38.1mm; 1.5"; No.char: 1; red; 5.5÷6.5m

Download KW1-1501ASA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this KW1-1501ASA model

Email notifications will be applied after download.

Send part feedback

Symbol

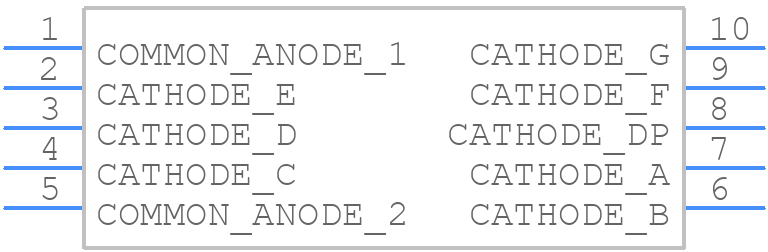

KW1-1501ASA - Luckylight - PCB symbol

PCB Footprints

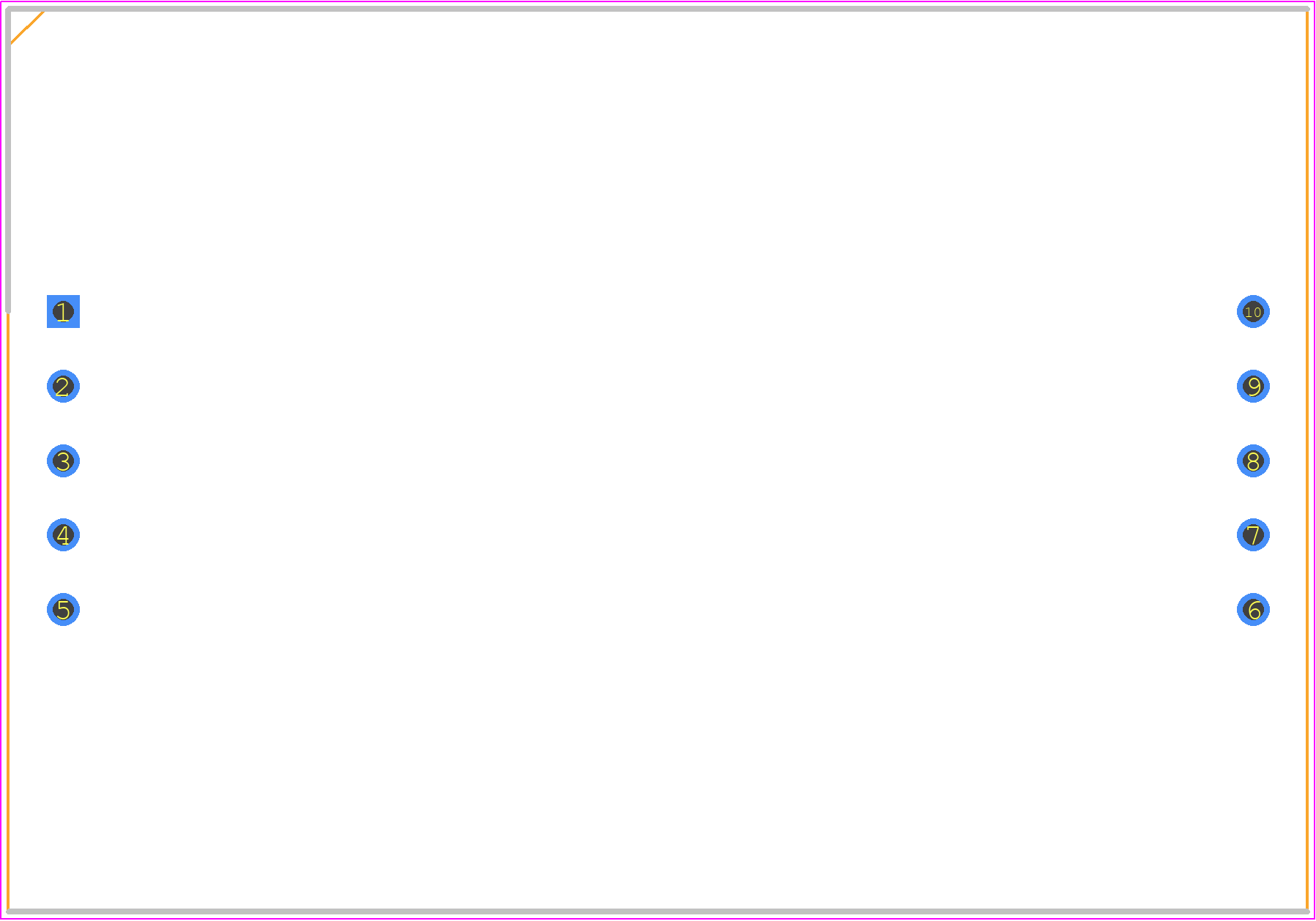

KW1-1501ASA - Luckylight PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 10-Pin DIP

Datasheet Download Datasheet
Stock & Prices Price & Stock for KW1-1501ASA
Part Number KW1-1501ASA
Manufacturer Luckylight
Pin Count 10
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 10-Pin DIP
Released Date Mar 6, 2024
Last Modified Date Mar 6, 2024 3:17 PM UTC
Pinout / Pin List Click Here (Member Only)

KW1-1501ASA Details

Manufacturer Part Number:
KW1-1501ASA
Manufacturer:
Lucky Light Electronics Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

KW1-1501ASA Overview

Use the download button to access the KW1-1501ASA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like KW1-1, or try a keyword search, such as LED Displays
