KW1-801AWB - Luckylight Electronics

Description: Display Modules - LED Character and Numeric White 7-Segment 1 Character Common Anode 3.2V 20mA 1.091" H x 0.787" W x 0.394" D (27.70mm x 20.00mm x 10.00mm) 10-DIP (0.900", 22.86mm)

Download KW1-801AWB Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this KW1-801AWB model

Email notifications will be applied after download.

Send part feedback

Symbol

KW1-801AWB - Luckylight Electronics - PCB symbol

PCB Footprints

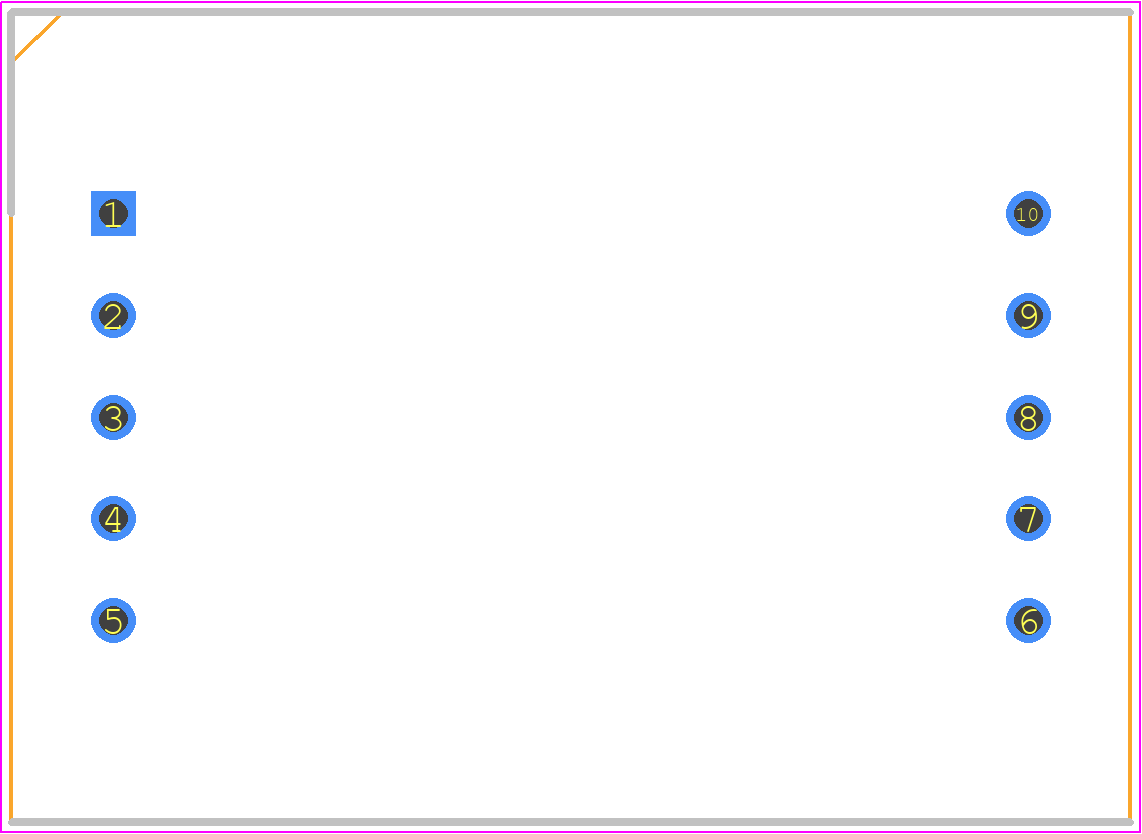

KW1-801AWB - Luckylight Electronics PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP10

Datasheet Download Datasheet
Stock & Prices Price & Stock for KW1-801AWB
Part Number KW1-801AWB
Manufacturer Luckylight Electronics
Pin Count 10
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - DIP10
Released Date May 22, 2024
Last Modified Date May 22, 2024 12:46 PM UTC
Pinout / Pin List Click Here (Member Only)

KW1-801AWB Details

Manufacturer Part Number:
KW1-801AWB
Part Life Cycle Code:
Contact Manufacturer
HTS Code:
8541.40.20.00
Manufacturer:
Lucky Light Electronics Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

KW1-801AWB Overview

Use the download button to access the KW1-801AWB schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like KW1-8, or try a keyword search, such as LED Displays
