KW2-281ASA - Luckylight Electronics

Description: 0.28 dual digit numeric display

Download KW2-281ASA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this KW2-281ASA model

Email notifications will be applied after download.

Send part feedback

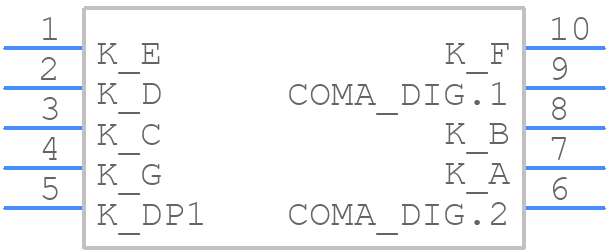

Symbol

KW2-281ASA - Luckylight Electronics - PCB symbol

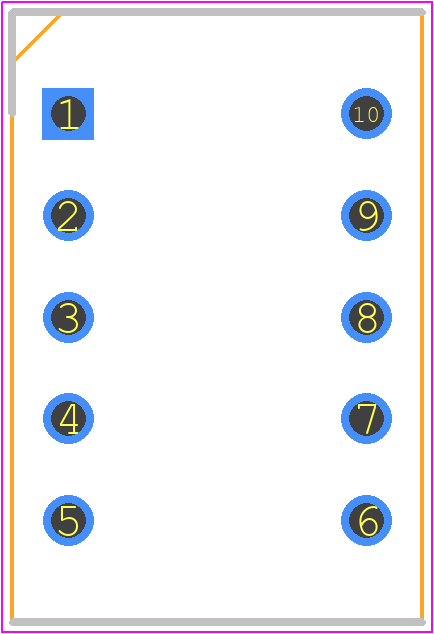

PCB Footprints

KW2-281ASA - Luckylight Electronics PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - KW2-281ASA

Datasheet Download Datasheet
Stock & Prices Price & Stock for KW2-281ASA
Part Number KW2-281ASA
Manufacturer Luckylight Electronics
Pin Count 10
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - KW2-281ASA
Released Date Aug 19, 2021
Last Modified Date Dec 3, 2023 6:26 AM UTC
Pinout / Pin List Click Here (Member Only)

KW2-281ASA Details

Manufacturer Part Number:
KW2-281ASA
Part Life Cycle Code:
Contact Manufacturer
HTS Code:
8541.40.20.00
Manufacturer:
Lucky Light Electronics Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

KW2-281ASA Overview

Use the download button to access the KW2-281ASA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like KW2-2, or try a keyword search, such as LED Displays
