KW2-391CVA - Luckylight

Description: Display: LED; 7-segment; 10mm; 0.39"; No.char: 2; red; 24÷48mcd

Download KW2-391CVA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this KW2-391CVA model

Email notifications will be applied after download.

Send part feedback

Symbol

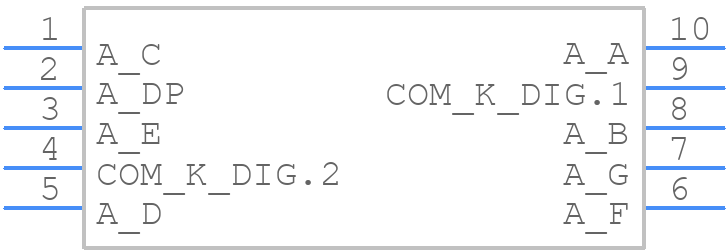

KW2-391CVA - Luckylight - PCB symbol

PCB Footprints

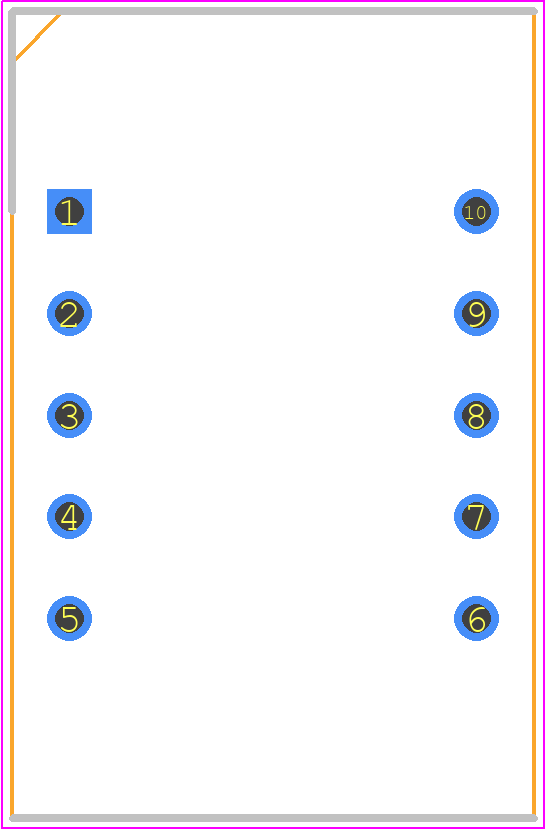

KW2-391CVA - Luckylight PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 10-Pin DIP_2024

Datasheet Download Datasheet
Stock & Prices Price & Stock for KW2-391CVA
Part Number KW2-391CVA
Manufacturer Luckylight
Pin Count 10
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 10-Pin DIP_2024
Released Date Apr 4, 2024
Last Modified Date Apr 4, 2024 7:32 AM UTC
Pinout / Pin List Click Here (Member Only)

KW2-391CVA Details

Manufacturer Part Number:
KW2-391CVA
Manufacturer:
Lucky Light Electronics Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

KW2-391CVA Overview

Use the download button to access the KW2-391CVA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like KW2-3, or try a keyword search, such as LED Displays
