KW3-361AVA - Luckylight

Description: Display Modules - LED Character and Numeric Red 7-Segment 3 Character Common Anode 2V 20mA 0.551" H x 0.886" W x 0.293" D (14.00mm x 22.50mm x 7.45mm) 12-DIP (0.400", 10.16mm)

Download KW3-361AVA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this KW3-361AVA model

Email notifications will be applied after download.

Send part feedback

Symbol

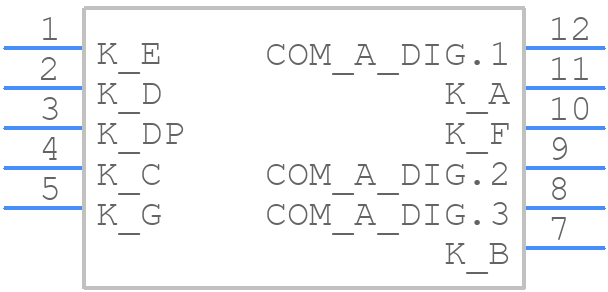

KW3-361AVA - Luckylight - PCB symbol

PCB Footprints

KW3-361AVA - Luckylight PCB footprint - Other - Other - KW3-361AVA-2

3D Models

KW3-361AVA - Luckylight - 3D model - Other - KW3-361AVA-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for KW3-361AVA
Part Number KW3-361AVA
Manufacturer Luckylight
Pin Count 11
Part Category Display
Package Category Other
Footprint Name Other - KW3-361AVA-2
Released Date Sep 18, 2025
Last Modified Date Sep 18, 2025 1:33 PM UTC
Pinout / Pin List Click Here (Member Only)

KW3-361AVA Details

Manufacturer Part Number:
KW3-361AVA
Part Life Cycle Code:
Contact Manufacturer
HTS Code:
8541.40.20.00
Manufacturer:
Lucky Light Electronics Co Ltd
