KW4-281ASB - Luckylight Electronics

Description: Display Segmented Module 4DIGIT 32LED SB. Red CA 12-Pin DIP Module

Download KW4-281ASB Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this KW4-281ASB model

Email notifications will be applied after download.

Send part feedback

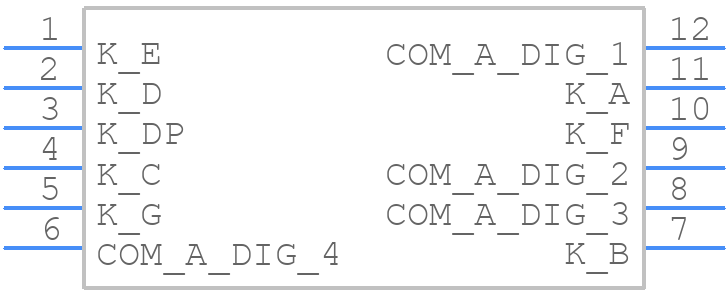

Symbol

KW4-281ASB - Luckylight Electronics - PCB symbol

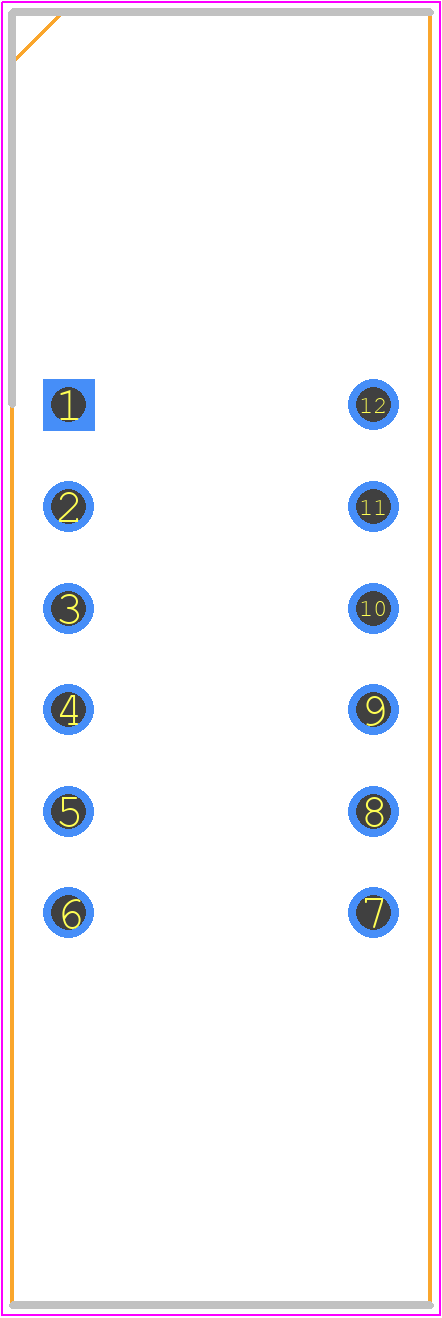

PCB Footprints

KW4-281ASB - Luckylight Electronics PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 12-Pin DIP

Datasheet Download Datasheet
Stock & Prices Price & Stock for KW4-281ASB
Part Number KW4-281ASB
Manufacturer Luckylight Electronics
Pin Count 12
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 12-Pin DIP
Released Date Apr 16, 2024
Last Modified Date Jun 25, 2024 8:10 AM UTC
Pinout / Pin List Click Here (Member Only)

KW4-281ASB Details

Manufacturer Part Number:
KW4-281ASB
Rohs Code:
Yes
Part Life Cycle Code:
Contact Manufacturer
HTS Code:
8541.40.20.00
Manufacturer:
Lucky Light Electronics Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

KW4-281ASB Overview

Use the download button to access the KW4-281ASB schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like KW4-2, or try a keyword search, such as LED Displays
