KW4-311CGA - Luckylight

Description: Display: LED; 7-segment; 8mm; yellow-green; 8-16mcd; cathode; 0.31

Download KW4-311CGA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this KW4-311CGA model

Email notifications will be applied after download.

Send part feedback

Symbol

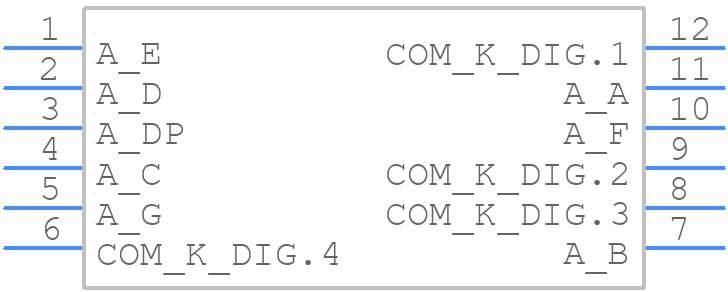

KW4-311CGA - Luckylight - PCB symbol

PCB Footprints

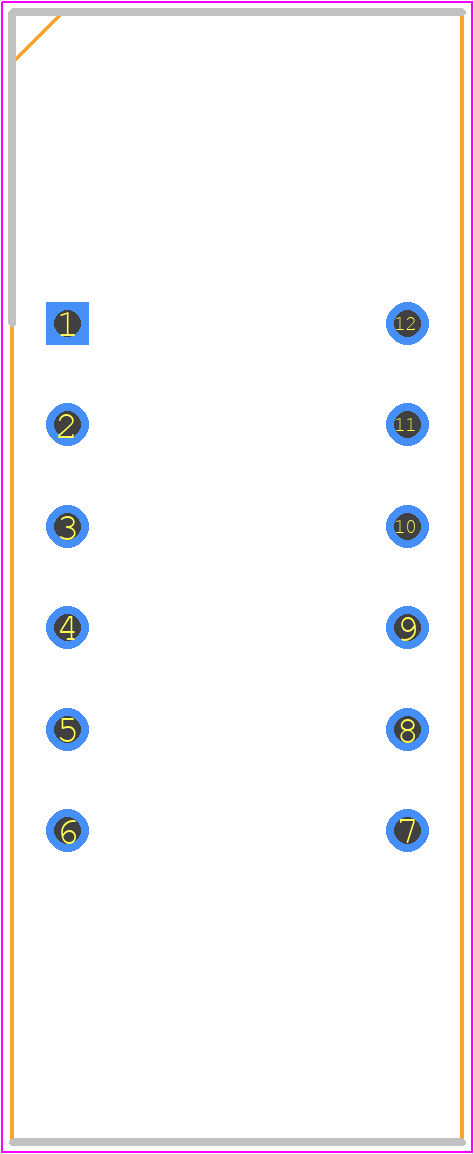

KW4-311CGA - Luckylight PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP-12_2024

Datasheet Download Datasheet
Stock & Prices Price & Stock for KW4-311CGA
Part Number KW4-311CGA
Manufacturer Luckylight
Pin Count 12
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - DIP-12_2024
Released Date Feb 16, 2024
Last Modified Date Feb 16, 2024 2:16 PM UTC
Pinout / Pin List Click Here (Member Only)

KW4-311CGA Details

Manufacturer Part Number:
KW4-311CGA
Part Life Cycle Code:
Contact Manufacturer
HTS Code:
8541.40.20.00
Manufacturer:
Lucky Light Electronics Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

KW4-311CGA Overview

Use the download button to access the KW4-311CGA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like KW4-3, or try a keyword search, such as LED Displays
