KW4-361ASB footprint, schematic symbol and 3D model by Luckylight

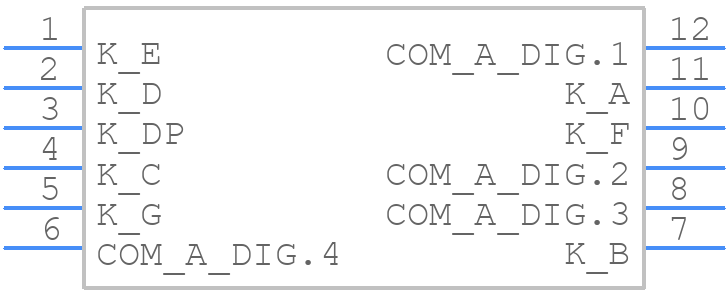

Symbol

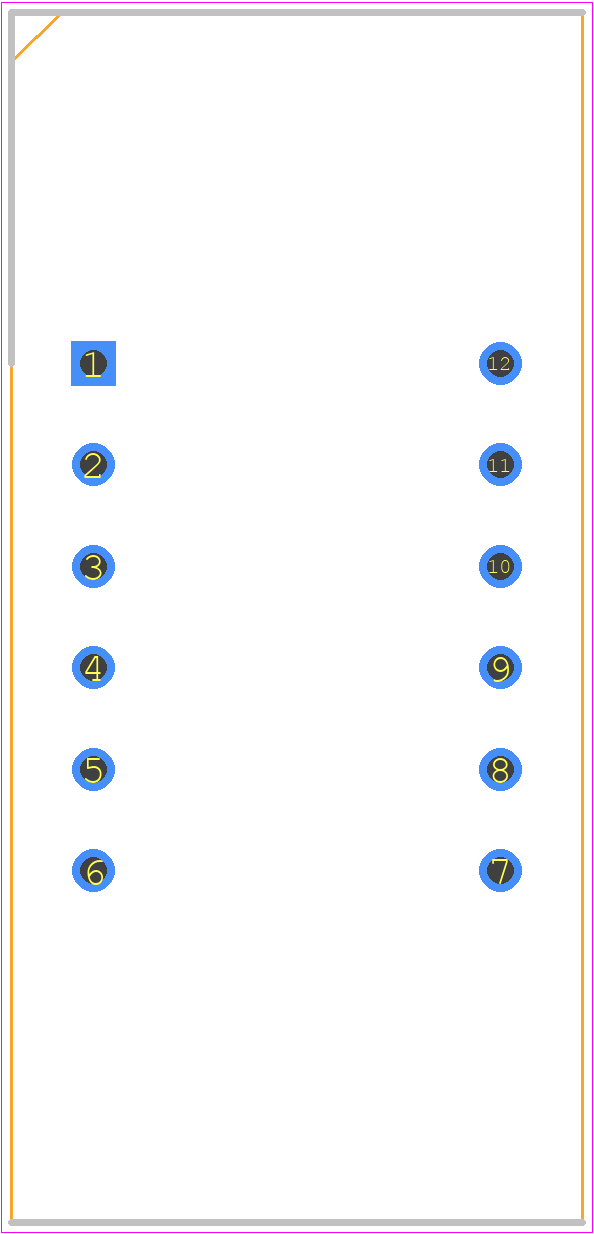

PCB Footprints

KW4-361ASB Details

The recommended storage temperature range for the KW4-361ASB is -40°C to 100°C.
Yes, the KW4-361ASB is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
The typical junction-to-ambient thermal resistance (RθJA) of the KW4-361ASB is around 20°C/W.
Yes, the KW4-361ASB is designed to operate in high-humidity environments, with a moisture sensitivity level (MSL) of 3.
The recommended PCB layout and land pattern for the KW4-361ASB can be found in the manufacturer's application note or by contacting their technical support team.

Community Provided

System Verified

Community Approved

Use the download button to access the KW4-361ASB schematic symbol and PCB footprint.
