KW4-39ACVA - Luckylight

Description: Display: LED; 7-segment; 10mm; 0.39"; No.char: 4; red; 20÷40mcd

Download KW4-39ACVA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this KW4-39ACVA model

Email notifications will be applied after download.

Send part feedback

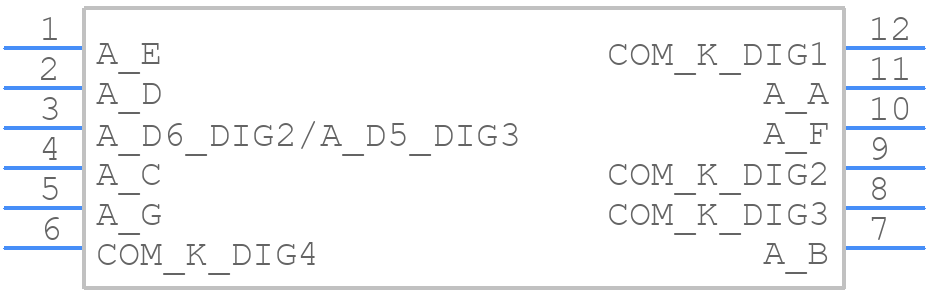

Symbol

KW4-39ACVA - Luckylight - PCB symbol

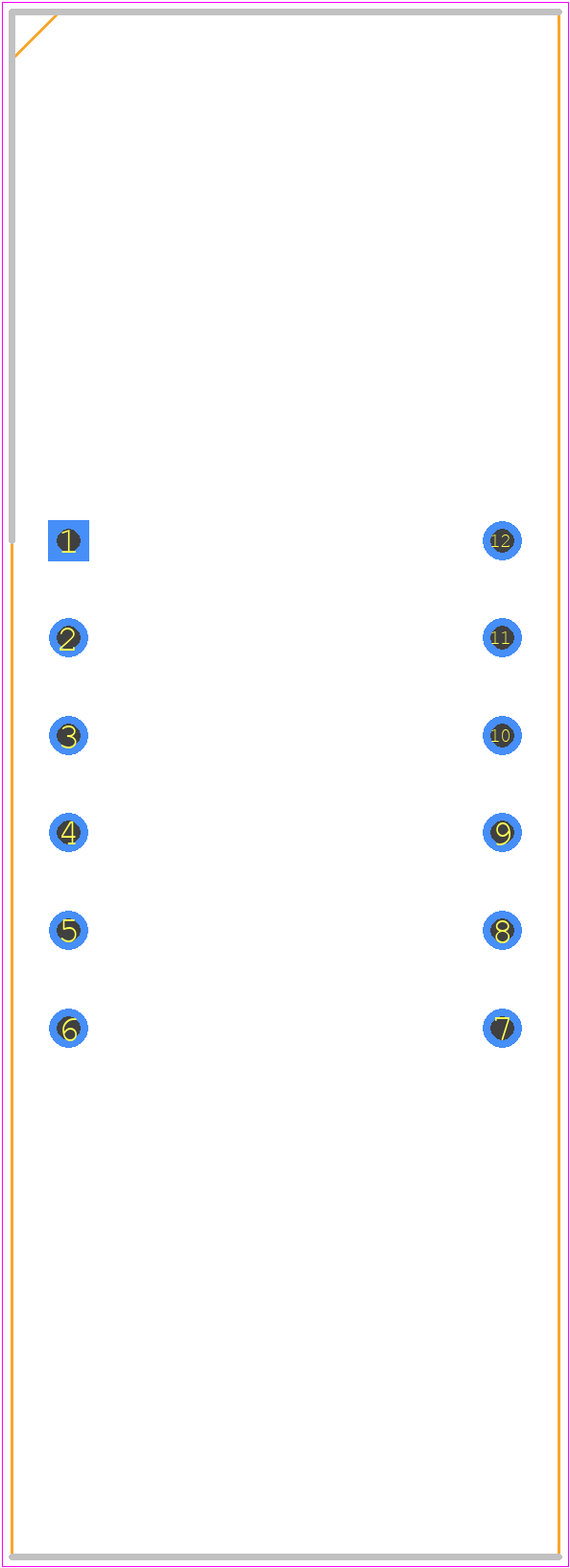

PCB Footprints

KW4-39ACVA - Luckylight PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 12-PIN DIP_2024

Datasheet Download Datasheet
Stock & Prices Price & Stock for KW4-39ACVA
Part Number KW4-39ACVA
Manufacturer Luckylight
Pin Count 12
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 12-PIN DIP_2024
Released Date Apr 4, 2024
Last Modified Date Apr 4, 2024 7:45 AM UTC
Pinout / Pin List Click Here (Member Only)

KW4-39ACVA Details

Manufacturer Part Number:
KW4-39ACVA
Manufacturer:
Lucky Light Electronics Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

KW4-39ACVA Overview

Use the download button to access the KW4-39ACVA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like KW4-3, or try a keyword search, such as LED Displays
