KW4-521CVA - Luckylight

Description: 0.52 inch (13.20mm), Red Quadruple Digit 7-segment LED Display

Download KW4-521CVA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this KW4-521CVA model

Email notifications will be applied after download.

Send part feedback

Symbol

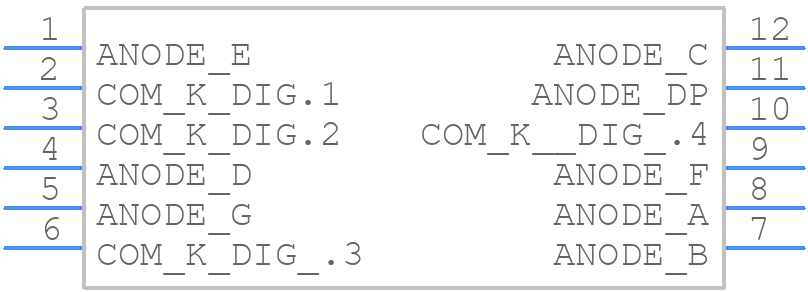

KW4-521CVA - Luckylight - PCB symbol

PCB Footprints

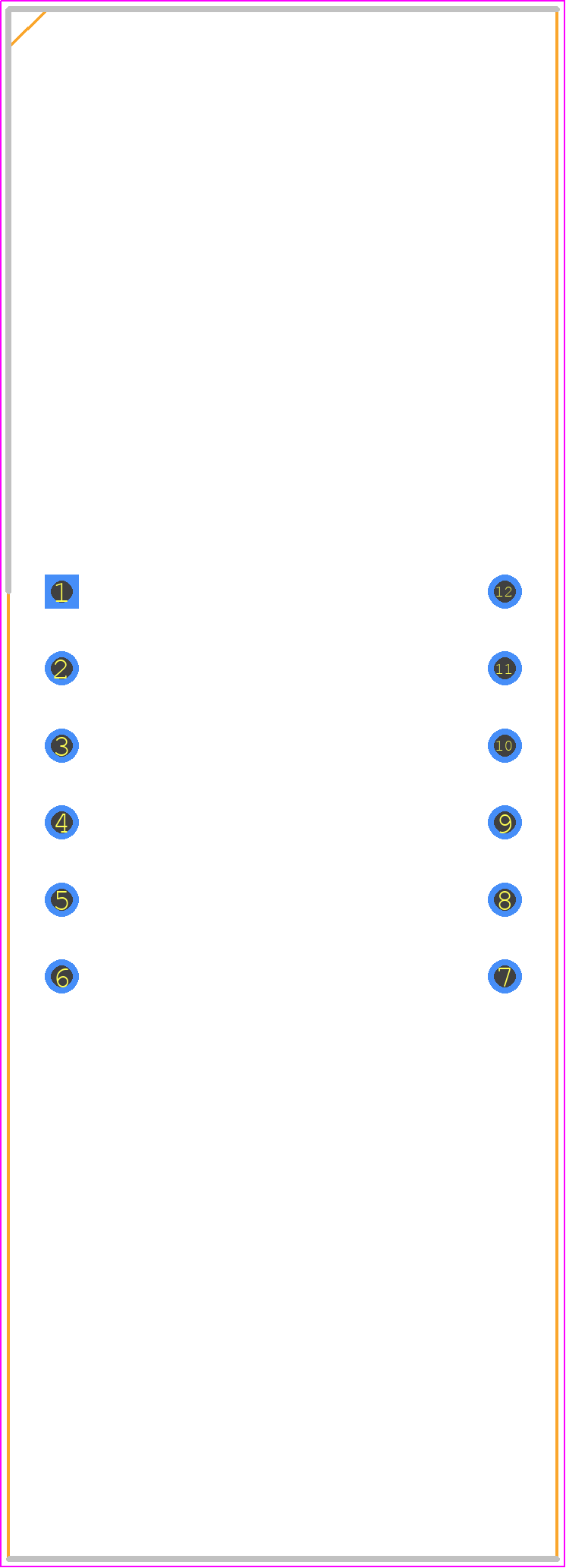

KW4-521CVA - Luckylight PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - KW4-521CVA

Datasheet Download Datasheet
Stock & Prices Price & Stock for KW4-521CVA
Part Number KW4-521CVA
Manufacturer Luckylight
Pin Count 12
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - KW4-521CVA
Released Date Jan 6, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

KW4-521CVA Details

Manufacturer Part Number:
KW4-521CVA
Manufacturer:
Lucky Light Electronics Co Ltd

Trust Checks

Expert Contribution

System Verified

Community Approved

KW4-521CVA Overview

Use the download button to access the KW4-521CVA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like KW4-5, or try a keyword search, such as LED Displays
