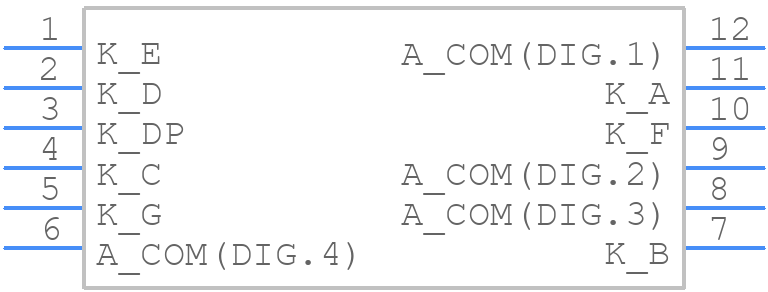

Symbol

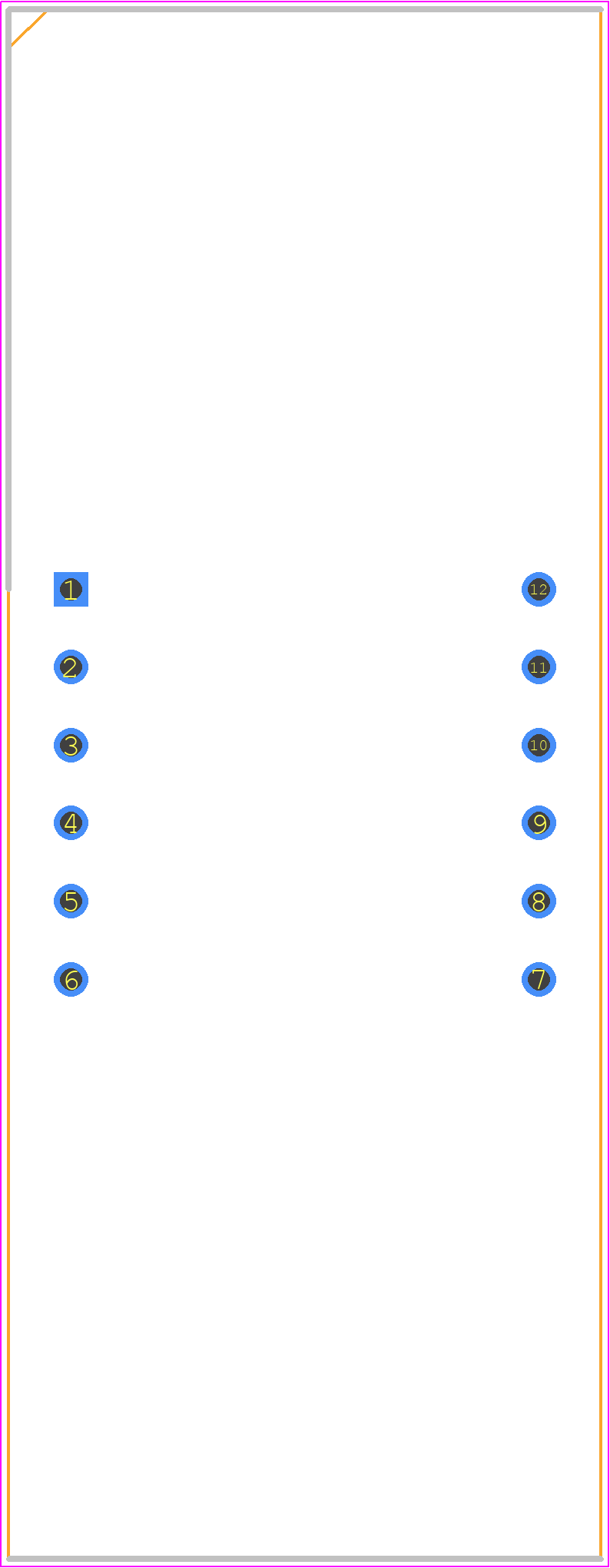

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for KW4-566ASB
- Part Number KW4-566ASB
- Manufacturer Luckylight
- Pin Count 12
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - KW4-566ASB
- Released Date Mar 21, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
KW4-566ASB Details
-
Manufacturer Part Number:
KW4-566ASB
-
Part Life Cycle Code:
Contact Manufacturer
-
HTS Code:
8541.40.20.00
-
Manufacturer:
Lucky Light Electronics Co Ltd
Trust Checks
Community Provided
System Verified
Community Approved
KW4-566ASB Overview
Use the download button to access the KW4-566ASB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like KW4-5,
or try a keyword search, such as LED Displays
