KW4-566CVB - Luckylight Electronics

Description: 14.20mm (0.56inch) Orange Red Clock Display Four Digit 7-segment LED Display 48 mW,40 mA~20 mA -40℃ to +80℃

Download KW4-566CVB Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this KW4-566CVB model

Email notifications will be applied after download.

Send part feedback

Symbol

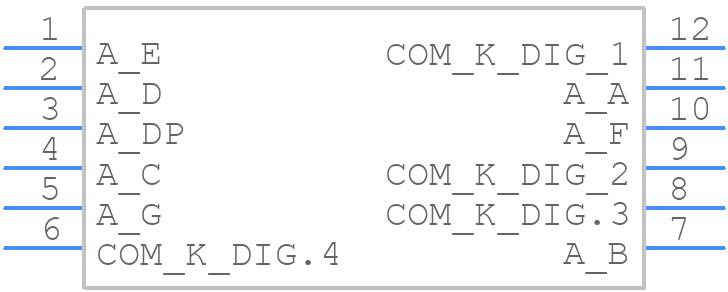

KW4-566CVB - Luckylight Electronics - PCB symbol

PCB Footprints

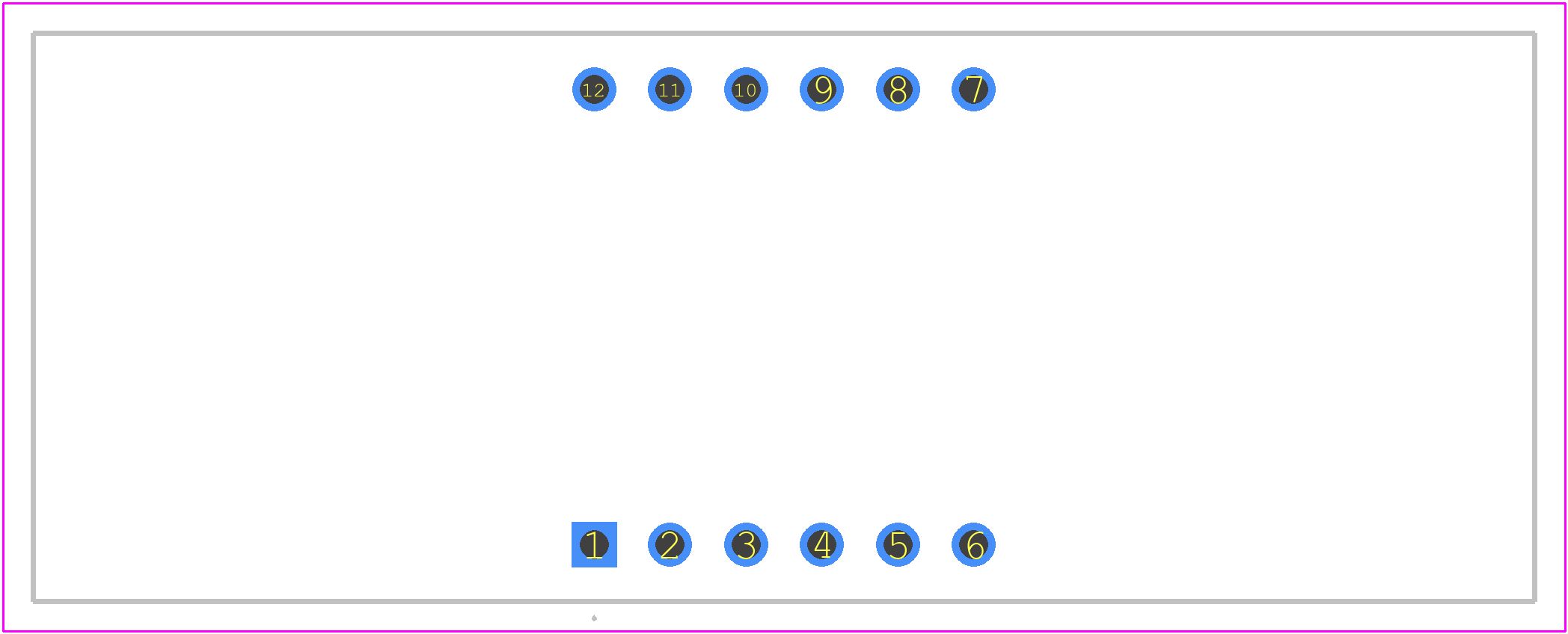

KW4-566CVB - Luckylight Electronics PCB footprint - Other - Other - KW4-566CVB-1

3D Models

KW4-566CVB - Luckylight Electronics - 3D model - Other - KW4-566CVB-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for KW4-566CVB
Part Number KW4-566CVB
Manufacturer Luckylight Electronics
Pin Count 12
Part Category Display
Package Category Other
Footprint Name Other - KW4-566CVB-1
Released Date Oct 10, 2025
Last Modified Date Oct 10, 2025 3:16 PM UTC
Pinout / Pin List Click Here (Member Only)

KW4-566CVB Details

Manufacturer Part Number:
KW4-566CVB
Part Life Cycle Code:
Contact Manufacturer
HTS Code:
8541.40.20.00
Manufacturer:
Lucky Light Electronics Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

KW4-566CVB Overview

Use the download button to access the KW4-566CVB schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like KW4-5, or try a keyword search, such as LED Displays
