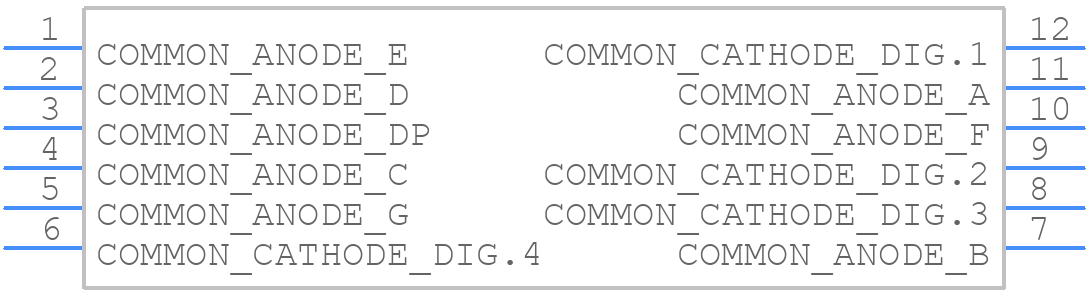

Symbol

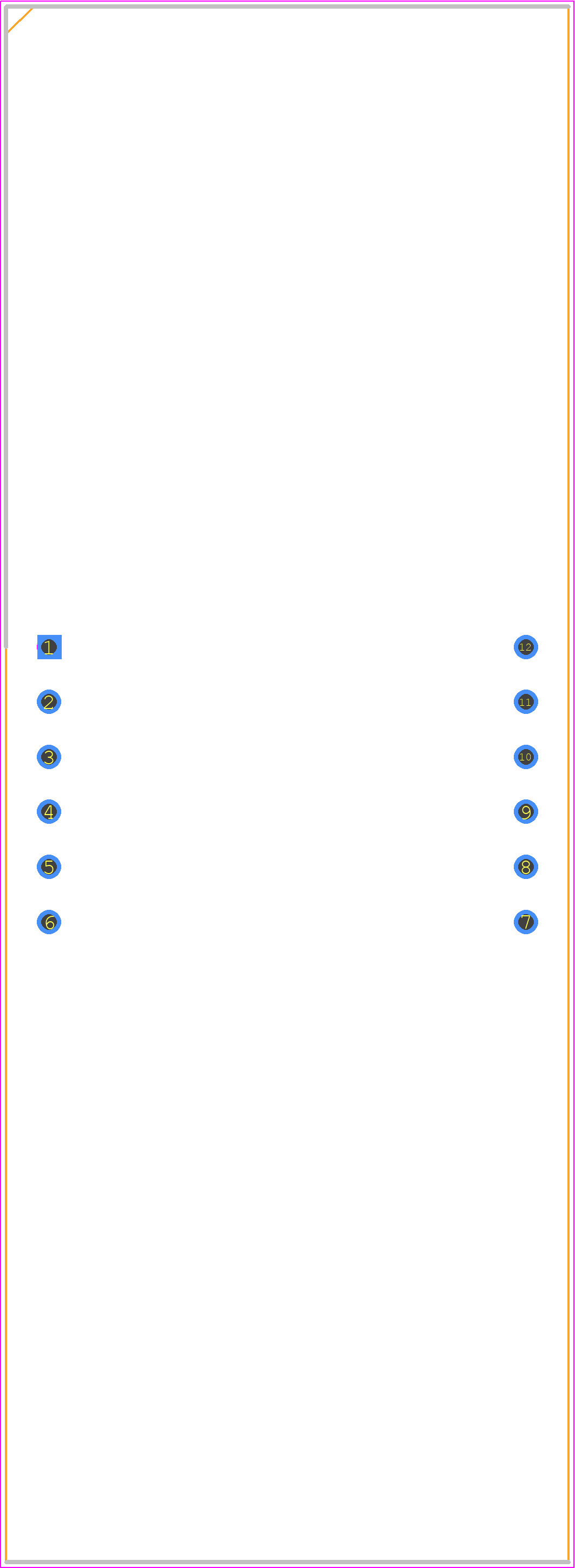

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for KW4-802CVB
- Part Number KW4-802CVB
- Manufacturer Luckylight
- Pin Count 12
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - KW4-802CVB
- Released Date Jun 1, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
KW4-802CVB Details
-
Manufacturer Part Number:
KW4-802CVB
-
Manufacturer:
Lucky Light Electronics Co Ltd
Trust Checks
Community Provided
System Verified
Community Approved
KW4-802CVB Overview
Use the download button to access the KW4-802CVB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like KW4-8,
or try a keyword search, such as LED Displays
