KW4-804CGB - Luckylight

Description: 0.80 inch (20.40mm), Yellow Green Quadruple Digit 7-segment LED Display

Download KW4-804CGB Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this KW4-804CGB model

Email notifications will be applied after download.

Send part feedback

Symbol

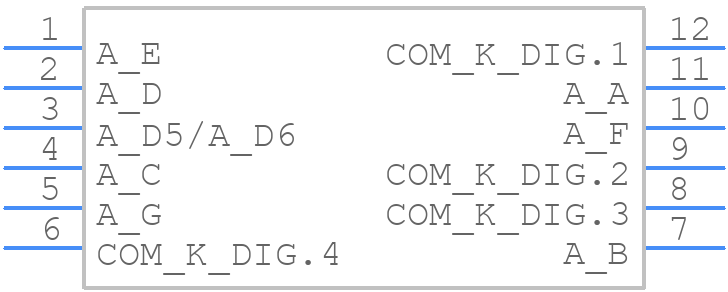

KW4-804CGB - Luckylight - PCB symbol

PCB Footprints

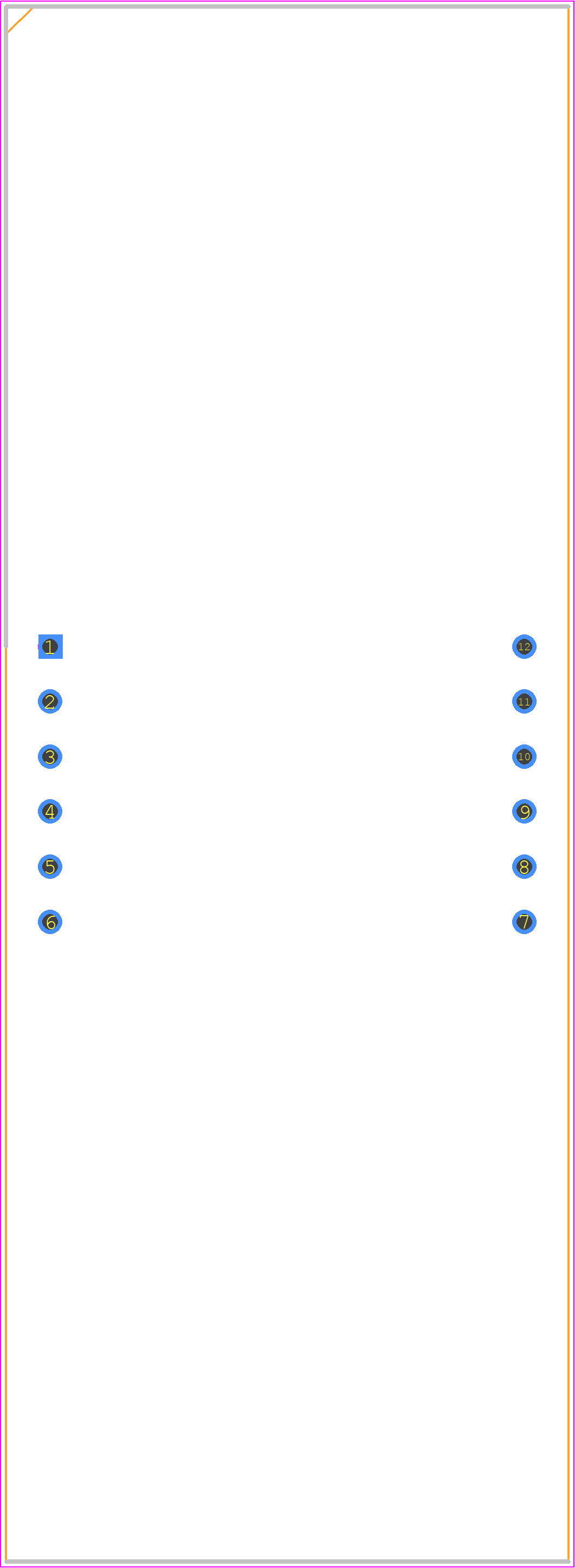

KW4-804CGB - Luckylight PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP-12

3D Models

KW4-804CGB - Luckylight - 3D model - Dual-In-Line Sockets - DIP-12

Datasheet Download Datasheet
Stock & Prices Price & Stock for KW4-804CGB
Part Number KW4-804CGB
Manufacturer Luckylight
Pin Count 12
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - DIP-12
Released Date May 18, 2023
Last Modified Date Mar 18, 2024 11:38 PM UTC
Pinout / Pin List Click Here (Member Only)

KW4-804CGB Details

Manufacturer Part Number:
KW4-804CGB
Manufacturer:
Lucky Light Electronics Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

KW4-804CGB Overview

Use the download button to access the KW4-804CGB schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like KW4-8, or try a keyword search, such as LED Displays
