KW4-804CVB - Luckylight

Description: KW4-804AVB/KW4-804CVB 0.80 inch (20.40mm), Red Quadruple Digit 7-segment LED Display.

Download KW4-804CVB Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this KW4-804CVB model

Email notifications will be applied after download.

Send part feedback

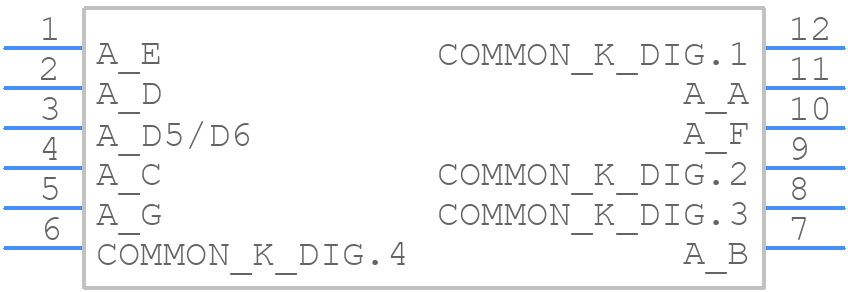

Symbol

KW4-804CVB - Luckylight - PCB symbol

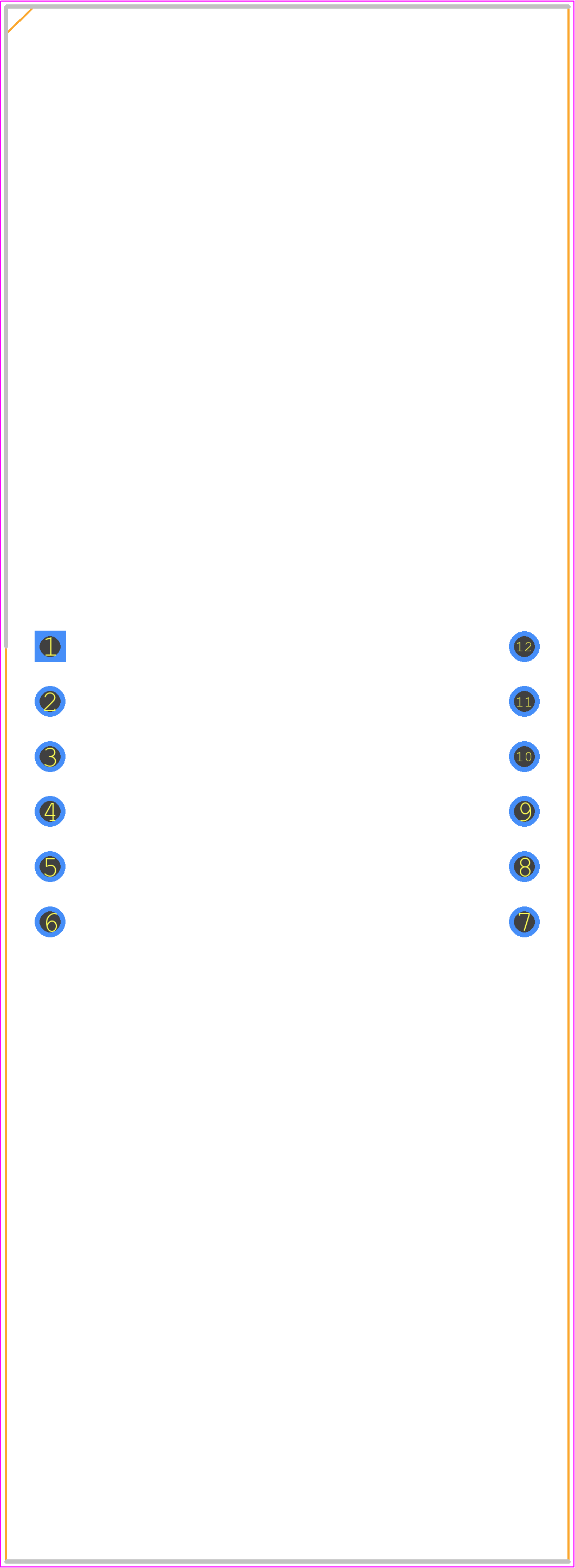

PCB Footprints

KW4-804CVB - Luckylight PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - KW4-804CVB

Datasheet Download Datasheet
Stock & Prices Price & Stock for KW4-804CVB
Part Number KW4-804CVB
Manufacturer Luckylight
Pin Count 12
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - KW4-804CVB
Released Date Jun 2, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

KW4-804CVB Details

Manufacturer Part Number:
KW4-804CVB
Manufacturer:
Lucky Light Electronics Co Ltd

Trust Checks

Expert Contribution

System Verified

Community Approved

KW4-804CVB Overview

Use the download button to access the KW4-804CVB schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like KW4-8, or try a keyword search, such as LED Displays
