Part Image

KW4-8828CGB - Luckylight

Description: Display: LED; 7-segment; 24mm; 0.94"; No.char: 4; yellow-green

Download KW4-8828CGB Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this KW4-8828CGB model

Email notifications will be applied after download.

Send part feedback

Symbol

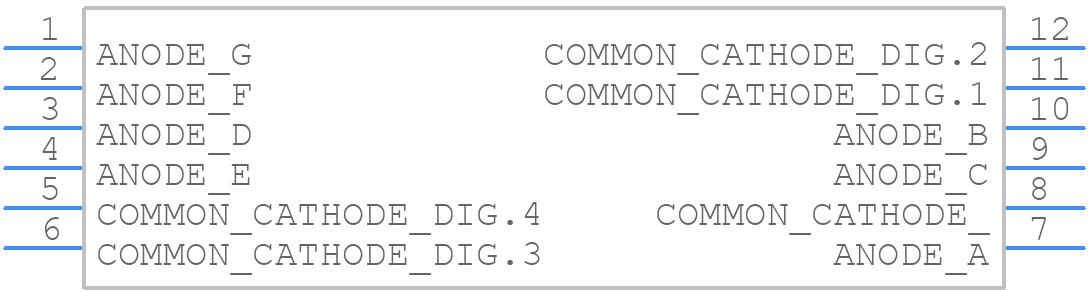

KW4-8828CGB - Luckylight - PCB symbol

PCB Footprints

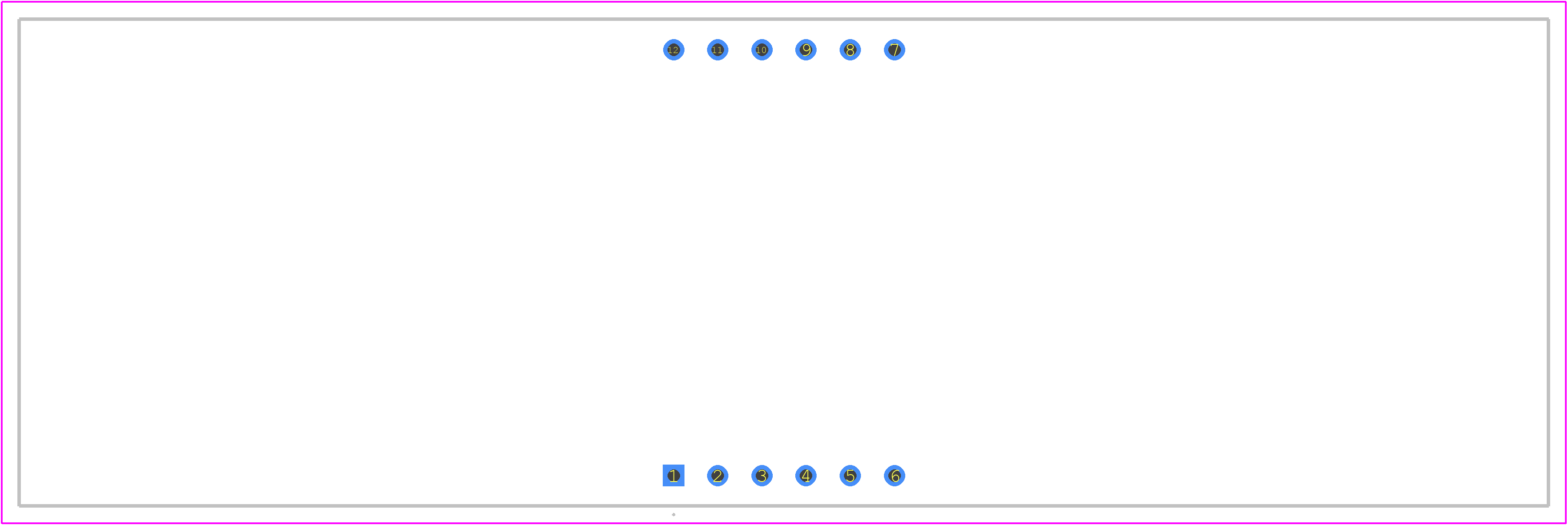

KW4-8828CGB - Luckylight PCB footprint - Other - Other - KW4-8828CGB-2

3D Models

KW4-8828CGB - Luckylight - 3D model - Other - KW4-8828CGB-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for KW4-8828CGB
Part Number KW4-8828CGB
Manufacturer Luckylight
Pin Count 12
Part Category Display
Package Category Other
Footprint Name Other - KW4-8828CGB-2
Released Date Mar 27, 2026
Last Modified Date Mar 27, 2026 4:29 AM UTC
Pinout / Pin List Click Here (Member Only)

KW4-8828CGB Details

Manufacturer Part Number:
KW4-8828CGB
Manufacturer:
Lucky Light Electronics Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

KW4-8828CGB Overview

Use the download button to access the KW4-8828CGB schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like KW4-8, or try a keyword search, such as LED Displays

Parts related to KW4-8828CGB

Showing 0 results
