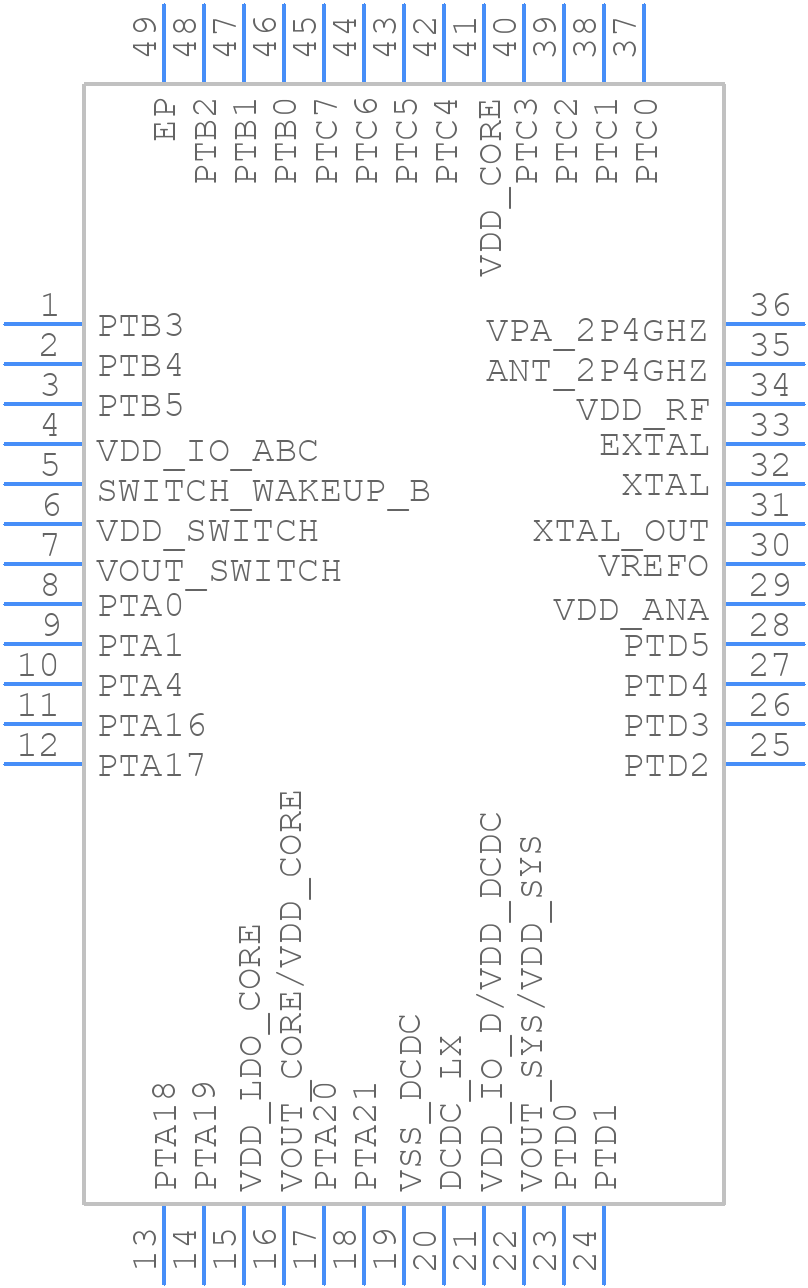

KW45B41Z82AFTBT - NXP

KW45B41Z82AFTBT Details

• Manufacturer Part Number:

  KW45B41Z82AFTBT

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  HVQFN-48

• HTS Code:

  8542.31.00.30

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  12

• JESD-30 Code:

  S-PQCC-N48

• Length:

  7 mm

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  48

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC48,.28SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE, HEAT SINK/SLUG

• Peak Reflow Temperature (Cel):

  260

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1 mm

• Supply Voltage-Max:

  1.21 V

• Supply Voltage-Min:

  1.04 V

• Supply Voltage-Nom:

  1.1 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  7 mm

• uPs/uCs/Peripheral ICs Type:

  RFSoC
