KW45B41Z83AFTBT - NXP

Description: IC RF TxRx + MCU Bluetooth, General ISM > 1GHz Bluetooth v5.3 2.36GHz ~ 2.48GHz 48-VFQFN Exposed Pad

Download KW45B41Z83AFTBT Model

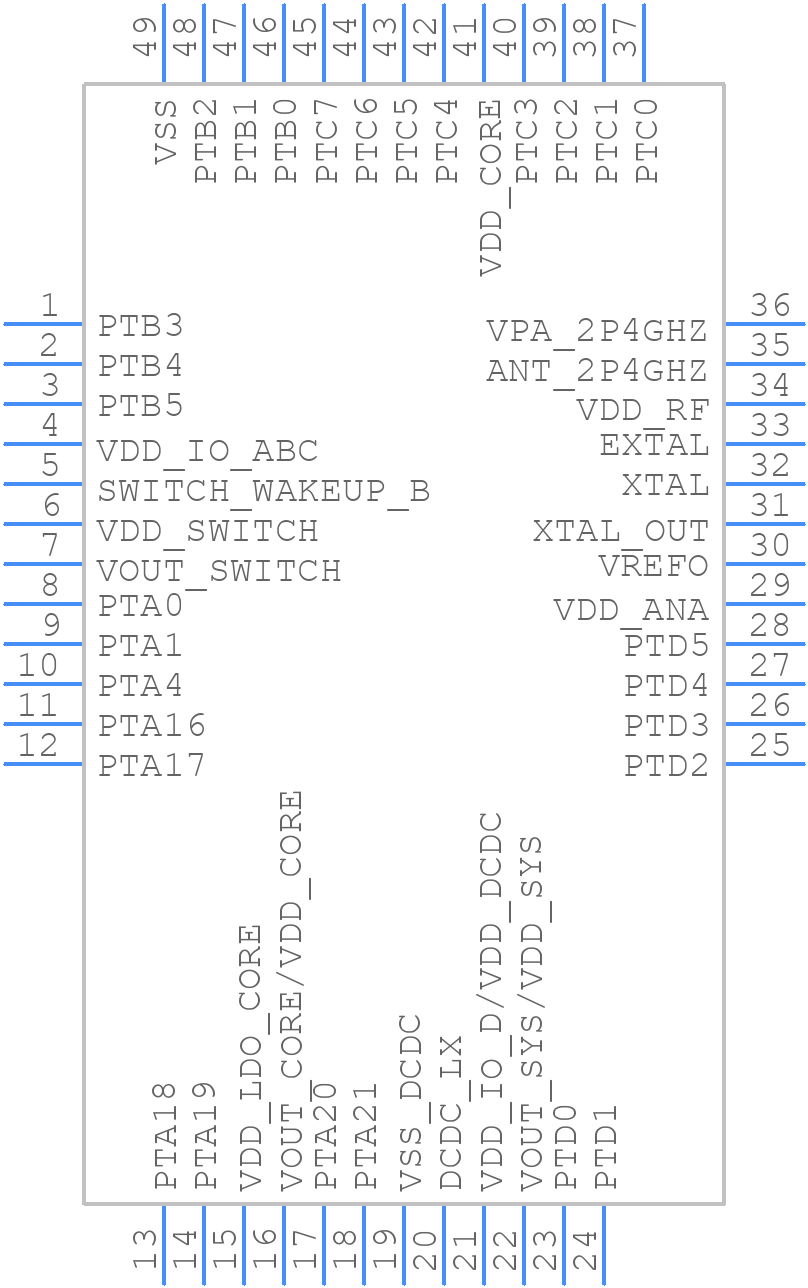

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
KW45B41Z83AFTBT - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HVQFN48 (SOT619-17(D))
click to zoom
3D Models
KW45B41Z83AFTBT - NXP  - 3D model - Quad Flat No-Lead - HVQFN48 (SOT619-17(D))
click to zoom

KW45B41Z83AFTBT Details

  • Manufacturer Part Number:

    KW45B41Z83AFTBT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQFN-48

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    12

  • JESD-30 Code:

    S-PQCC-N48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.28SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    1.21 V

  • Supply Voltage-Min:

    1.04 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

KW45B41Z83AFTBT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the antenna away from noisy components and ensure a clear keep-out zone around the module.
  • Use a 50-ohm antenna with a quarter-wave monopole or a dipole design. Ensure the antenna is matched to the module's impedance and placed at least 10mm away from the PCB edge.
  • The recommended operating temperature range is -40°C to +85°C. However, the module can tolerate up to +105°C for short periods during manufacturing or testing.
  • Implement frequency hopping, adaptive frequency agility, and error correction mechanisms like FEC and ARQ. Also, use a robust modulation scheme like GFSK or MSK.
  • The typical current consumption is around 35mA during transmission and 20mA during reception. However, this can vary depending on the specific use case and configuration.
