KWA-541CBB - Luckylight

Description: 0.54" dual digit alphanumeric display

Download KWA-541CBB Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this KWA-541CBB model

Email notifications will be applied after download.

Send part feedback

Symbol

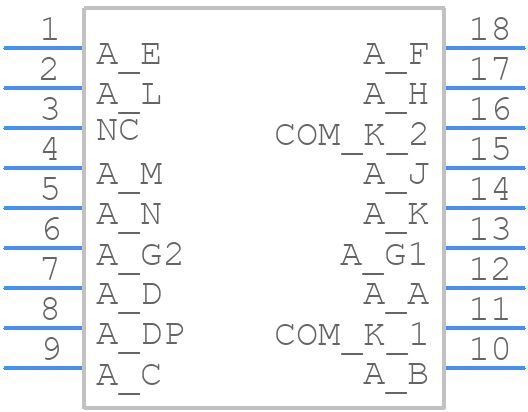

KWA-541CBB - Luckylight - PCB symbol

PCB Footprints

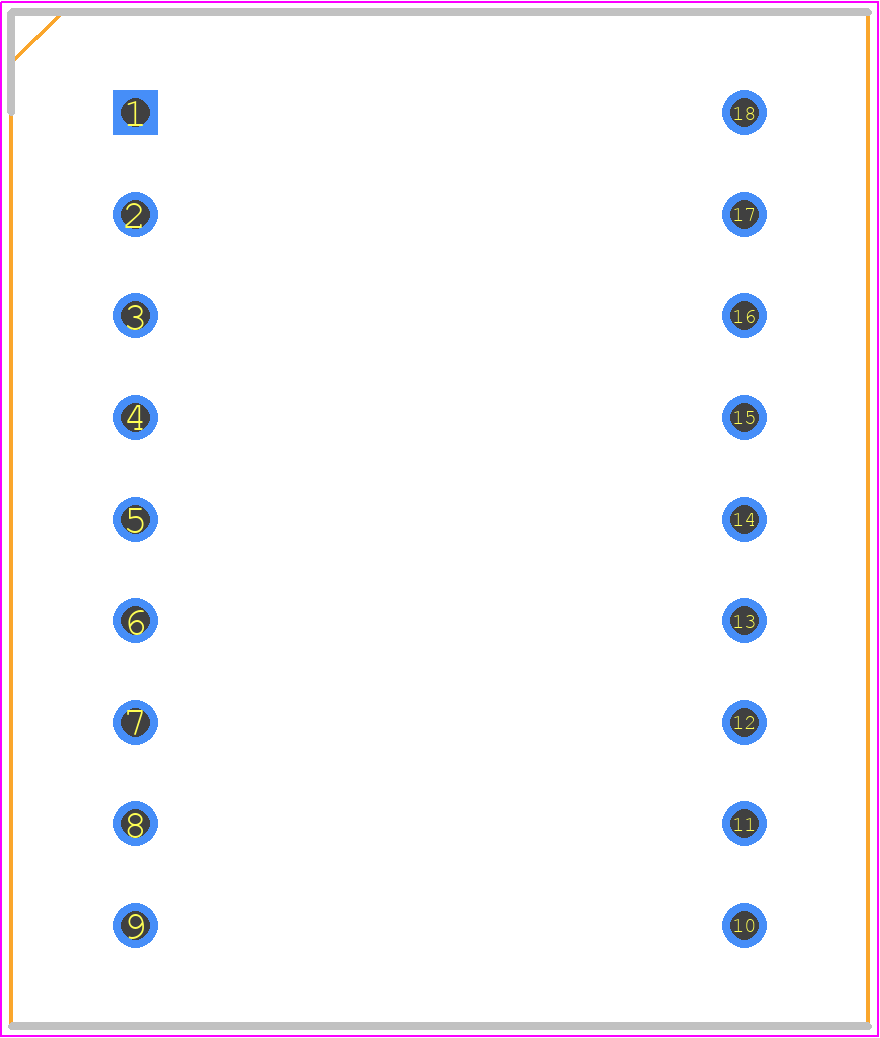

KWA-541CBB - Luckylight PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - KWA-541CBB_

Datasheet Download Datasheet
Stock & Prices Price & Stock for KWA-541CBB
Part Number KWA-541CBB
Manufacturer Luckylight
Pin Count 18
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - KWA-541CBB_
Released Date Jan 26, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

KWA-541CBB Details

Manufacturer Part Number:
KWA-541CBB
Part Life Cycle Code:
Contact Manufacturer
HTS Code:
8541.40.20.00
Manufacturer:
Lucky Light Electronics Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

KWA-541CBB Overview

Use the download button to access the KWA-541CBB schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like KWA-5, or try a keyword search, such as LED Displays
