KWM-30881CVB - Luckylight Electronics

Description: KWM-30881AVB/KWM-30881CVB 1.2 inch (32.0mm), Red Φ3.0mm 8×8 Dot Matrix LED Display

Download KWM-30881CVB Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this KWM-30881CVB model

Email notifications will be applied after download.

Send part feedback

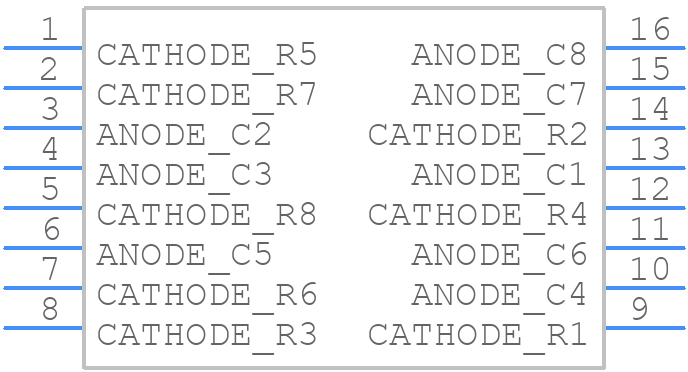

Symbol

KWM-30881CVB - Luckylight Electronics - PCB symbol

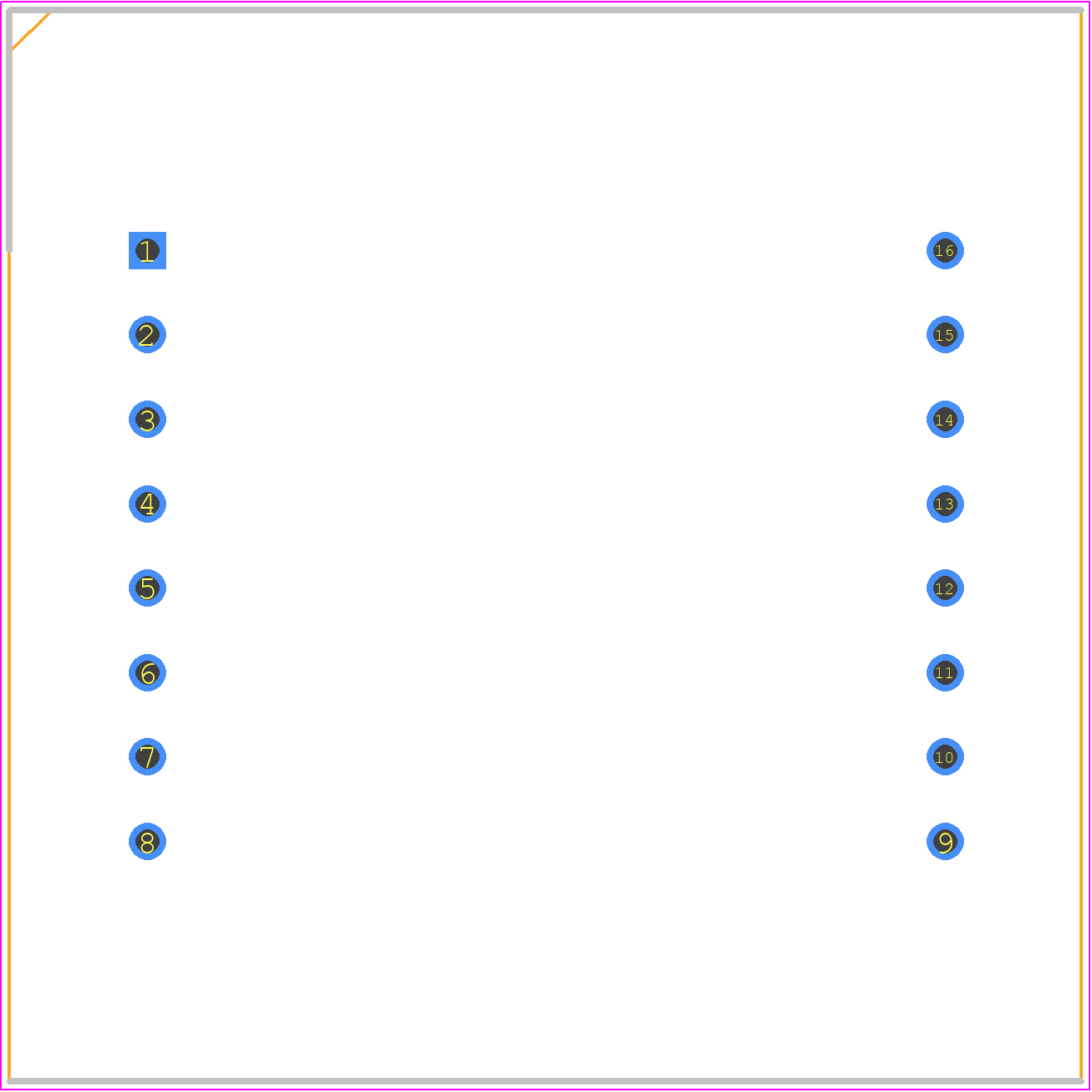

PCB Footprints

KWM-30881CVB - Luckylight Electronics PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - KWM-30881CVB

3D Models

KWM-30881CVB - Luckylight Electronics - 3D model - Dual-In-Line Sockets - KWM-30881CVB

Datasheet Download Datasheet
Stock & Prices Price & Stock for KWM-30881CVB
Part Number KWM-30881CVB
Manufacturer Luckylight Electronics
Pin Count 16
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - KWM-30881CVB
Released Date May 6, 2020
Last Modified Date Mar 27, 2024 4:18 AM UTC
Pinout / Pin List Click Here (Member Only)

KWM-30881CVB Details

Manufacturer Part Number:
KWM-30881CVB
Part Life Cycle Code:
Contact Manufacturer
HTS Code:
8541.40.20.00
Manufacturer:
Lucky Light Electronics Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

KWM-30881CVB Overview

Use the download button to access the KWM-30881CVB schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like KWM-3, or try a keyword search, such as LED Displays
