ROHM provides a recommended PCB layout and land pattern in their application note AP144, which can be found on their website. It's essential to follow these guidelines to ensure proper mounting and minimize noise.
Calibration is not typically required for the KX134ACR-LBZE2, as it is a self-contained accelerometer with internal calibration. However, if you need to perform calibration, ROHM recommends using a 6-point calibration method, which involves applying known accelerations to the device and measuring its output.
While the datasheet specifies an operating temperature range of -40°C to 85°C, ROHM recommends derating the device's performance above 70°C. It's essential to consider the device's thermal characteristics and potential thermal stress in your design.
To minimize noise and EMI, use proper PCB design techniques, such as separating analog and digital grounds, using decoupling capacitors, and shielding the device. Additionally, consider using a low-pass filter or a notch filter to reduce noise in the frequency range of interest.
ROHM recommends a power-on sequence of VDD first, followed by VCC. This ensures that the internal voltage regulator is properly enabled before the device becomes active.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KX134ACR-LBZE2 Overview

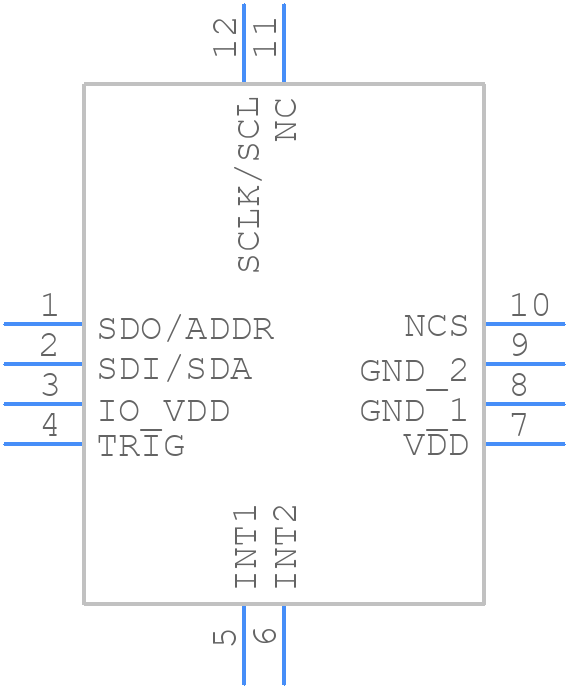

Use the download button to access the KX134ACR-LBZE2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KX134,
or try a keyword search, such as Other Sensors/Transducers
