L01Z200S05 - Tamura

Description: Board Mount Current Sensors CURRENT SENSOR ( 200A; +5V)

Download L01Z200S05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
L01Z200S05 - Tamura - PCB symbol
click to zoom
PCB Footprints

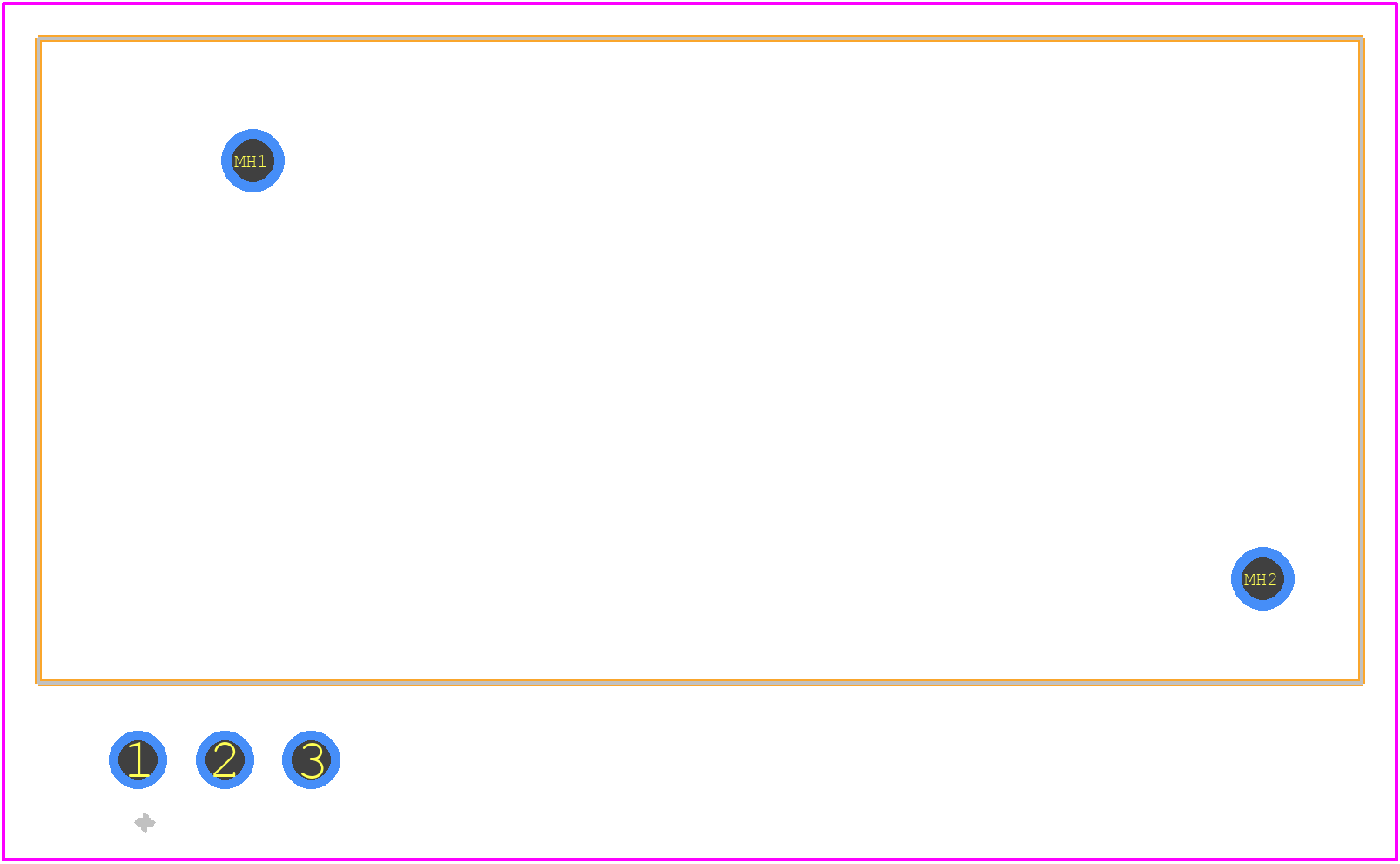

L01Z200S05 - Tamura PCB footprint - Other - Other - L01Z200S05-2
click to zoom
3D Models
L01Z200S05 - Tamura - 3D model - Other - L01Z200S05-2
click to zoom

L01Z200S05 Details

  • Manufacturer Part Number:

    L01Z200S05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-3

  • Country Of Origin:

    Mainland China

  • Manufacturer:

    Tamura Corporation of America

  • Body Breadth:

    1.5 mm

  • Body Height:

    27 mm

  • Body Length or Diameter:

    38 mm

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Range:

    0.5-4.5V

  • Output Type:

    VOLTAGE OUTPUT

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.1 V

  • Supply Voltage-Min:

    4.9 V

L01Z200S05 Frequently Asked Questions (FAQs)

  • A recommended PCB layout is to use a 4-layer board with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common mode choke and a shielded cable for the input and output connections.
  • To ensure reliability in high-temperature applications, it's recommended to derate the output power of the L01Z200S05 according to the temperature derating curve provided in the datasheet. Additionally, ensure good airflow around the device and use a heat sink if necessary.
  • The maximum allowable voltage deviation for the L01Z200S05 is ±10% of the nominal input voltage. Exceeding this deviation may affect the performance and reliability of the device.
  • Yes, the L01Z200S05 can be used in a redundant or parallel configuration, but it's recommended to consult with Tamura Corporation of America's application engineers to ensure proper design and implementation.
  • The typical MTBF of the L01Z200S05 is >1 million hours, calculated according to MIL-HDBK-217F. However, the actual MTBF may vary depending on the application and operating conditions.
