A recommended PCB layout for the L03S050D15 would be to use a multi-layer board with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common mode choke or a ferrite bead to filter out high-frequency noise.
To ensure reliability in high-temperature applications, it's recommended to derate the output current of the L03S050D15 according to the temperature derating curve provided in the datasheet. Additionally, ensure good airflow around the device and consider using a heat sink if necessary.
To minimize EMI, it's recommended to use a shielded enclosure, keep the input and output cables as short as possible, and use twisted pair cables for the input and output. Additionally, consider using EMI filters or common mode chokes to reduce electromagnetic radiation.
Yes, the L03S050D15 can be used in a redundant or parallel configuration to increase the overall power rating or to provide redundancy in critical applications. However, it's recommended to consult with the manufacturer or a qualified engineer to ensure proper implementation.
The L03S050D15 should be stored in a dry, cool place away from direct sunlight and moisture. It's recommended to handle the device by the body, avoiding touching the pins or electrical components to prevent damage or electrical shock.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
L03S050D15 Overview

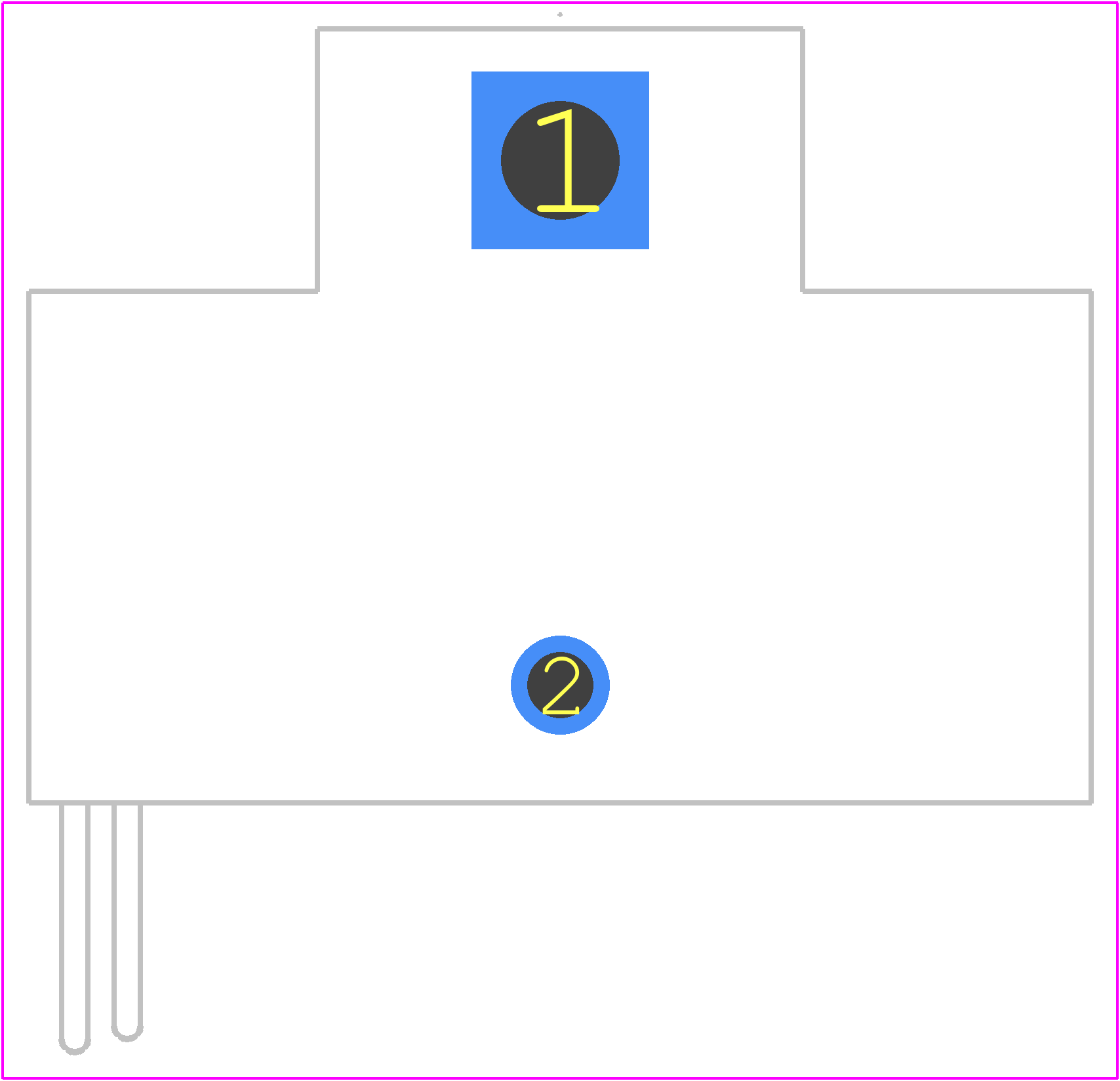

Use the download button to access the L03S050D15 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like L03S0,
or try a keyword search, such as Other Sensors/Transducers
