L177SDB25SOL2 - Amphenol

Description: D-Subminiature Stamped Signal 3A Straight PCB Thru Hole Back Insulator Plus Back Shell Height 6.0mm 25 Socket 0.38 (15 ) Gold Bright Tin Shell 3.05mm (.120in) Clear Hole Without Standoff Boardlock

Download L177SDB25SOL2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
L177SDB25SOL2 - Amphenol - PCB symbol
click to zoom
PCB Footprints

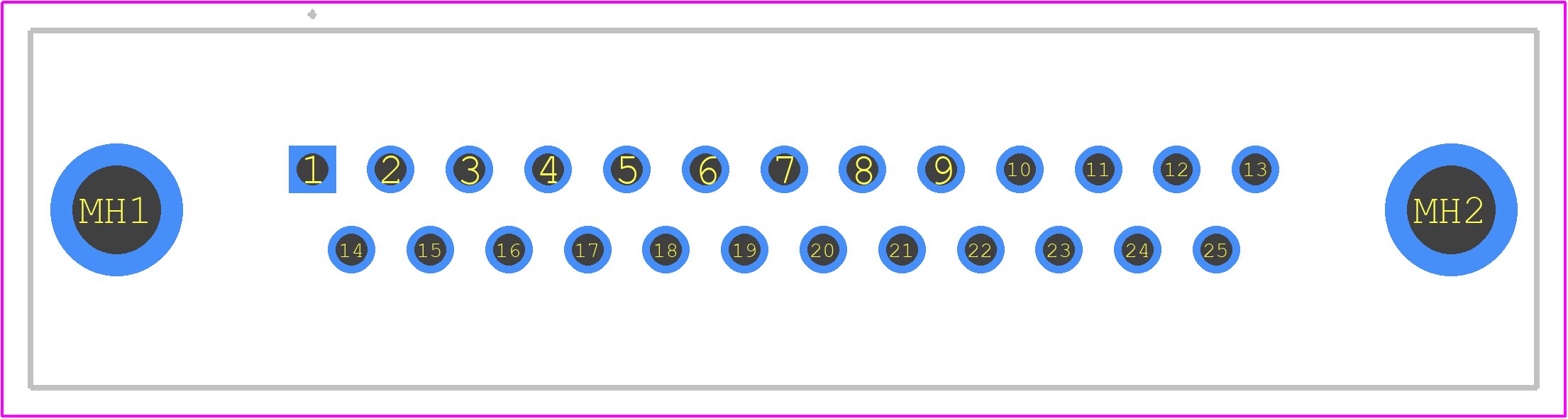

L177SDB25SOL2 - Amphenol PCB footprint - Other - Other - L177SDB25SOL2-1
click to zoom
3D Models
L177SDB25SOL2 - Amphenol - 3D model - Other - L177SDB25SOL2-1
click to zoom

L177SDB25SOL2 Details

  • Manufacturer Part Number:

    L177SDB25SOL2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8.5

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    TIN OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    YES

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Shell Size:

    3/B

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    25

  • UL Flammability Code:

    94V-0

L177SDB25SOL2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw locks on the L177SDB25SOL2 connector, as specified by Amphenol Corporation.
  • Yes, the L177SDB25SOL2 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration, and 3 axes, according to Amphenol Corporation's specifications.
  • Yes, the L177SDB25SOL2 connector is designed to meet the requirements of harsh environment applications, with a salt spray resistance of 48 hours and a humidity rating of 95% RH at 40°C (104°F), as specified by Amphenol Corporation.
  • The maximum operating temperature range for the L177SDB25SOL2 connector is -55°C to 125°C (-67°F to 257°F), as specified by Amphenol Corporation.
  • Yes, the L177SDB25SOL2 connector is designed to support high-speed data transmission, with a bandwidth of up to 10 Gbps and a frequency range of up to 10 GHz, according to Amphenol Corporation's specifications.
