- Part Number L177SDE09SOL2
- Manufacturer Amphenol
- Pin Count 11
- Part Category Connector
- Package Category Other
- Footprint Name Other - L177SDE09SOL2-1
- Released Date Sep 5, 2020
- Last Modified Date Oct 26, 2025 3:01 PM UTC
- Pinout / Pin List Click Here (Member Only)
L177SDE09SOL2 Details
-
Manufacturer Part Number:
L177SDE09SOL2
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
Amphenol Corporation
-
YTEOL:
8.5
-
Connector Type:
D SUBMINIATURE CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
-
Contact Finish Termination:
TIN OVER NICKEL
-
Contact Gender:
FEMALE
L177SDE09SOL2 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-0.7 Nm (5-7 in-lbs). This information is typically provided in the manufacturer's application notes or installation guides.
-
Yes, the L177SDE09SOL2 is designed to withstand high-vibration environments. Amphenol's datasheet mentions that the connector meets the vibration requirements of MIL-DTL-22992, which includes tests for vibration, shock, and acceleration.
-
The operating temperature range for the L177SDE09SOL2 is -55°C to +125°C (-65°F to +257°F). This information is typically provided in the datasheet, but it's essential to verify it for specific applications.
-
Yes, the L177SDE09SOL2 is designed for outdoor use and can withstand harsh environments. It has a sealed construction and meets the IP67 rating, which means it can withstand immersion in water up to 1 meter for 30 minutes.
-
The L177SDE09SOL2 is designed for use with 18-24 AWG wire. While it may be possible to use it with other wire gauges or types, it's essential to verify the compatibility and ensure that the connector can handle the wire's physical and electrical properties.
Trust Checks
Expert Contribution
System Verified
Community Approved
L177SDE09SOL2 Overview

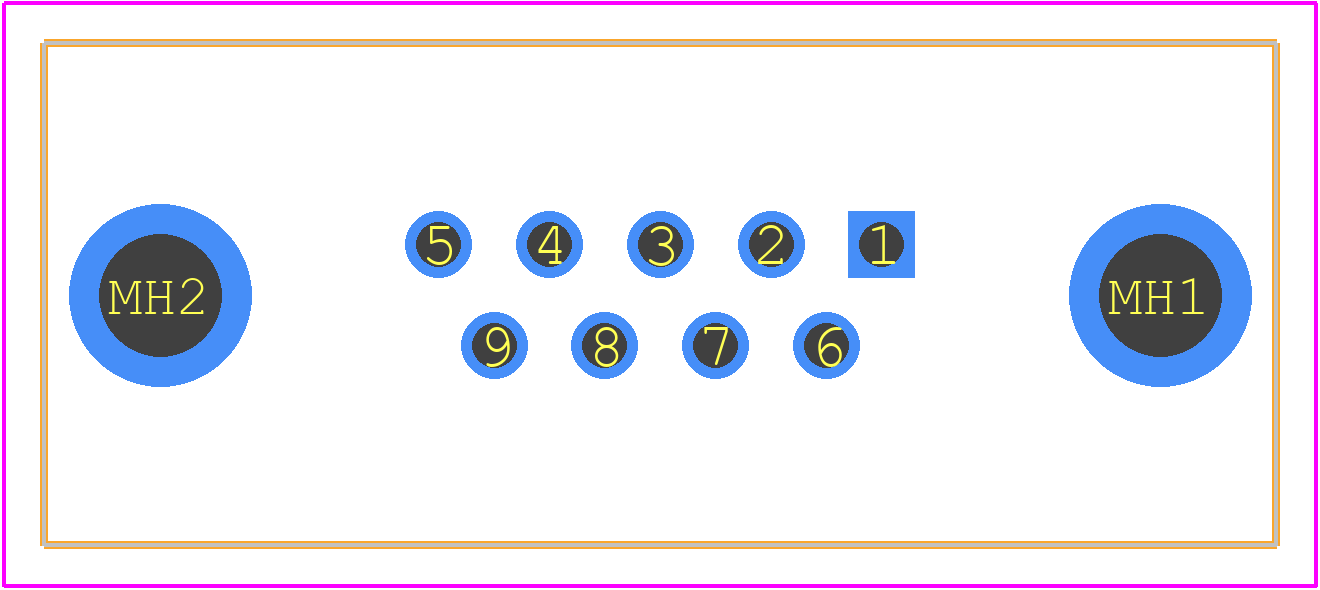

Use the download button to access the L177SDE09SOL2 schematic symbol, PCB footprint, and 3D model.
