- Part Number L20G20ISTR
- Manufacturer STMicroelectronics
- Pin Count 12
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - LGA-12 XDM
- Released Date Nov 29, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
L20G20ISTR Details
-
Manufacturer Part Number:
L20G20ISTR
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Package Description:
LGA-12
-
HTS Code:
8542.39.00.01
-
Manufacturer:
STMicroelectronics
-
YTEOL:
3
-
Analog IC - Other Type:
ANALOG CIRCUIT
-
JESD-30 Code:
S-PBGA-N12
-
Length:
2 mm
L20G20ISTR Frequently Asked Questions (FAQs)
-
STMicroelectronics provides a recommended PCB layout in the application note AN5126, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
-
The L20G20ISTR requires calibration for accurate measurements. STMicroelectronics provides a calibration procedure in the datasheet, which involves applying a known magnetic field and adjusting the sensitivity and offset registers accordingly.
-
The L20G20ISTR is rated for operation from -40°C to 125°C, but the accuracy and sensitivity may degrade at extreme temperatures. It's essential to consider the operating temperature range in your design and ensure proper thermal management.
-
Yes, the L20G20ISTR is designed to operate in high-vibration environments, but it's essential to ensure proper mechanical mounting and consider the vibration frequency and amplitude in your design.
-
The L20G20ISTR communicates via a standard I2C or SPI interface. STMicroelectronics provides example code and documentation for popular microcontrollers, such as Arduino and STM32, to help with integration.
Trust Checks
Expert Contribution
System Verified
Community Approved
L20G20ISTR Overview

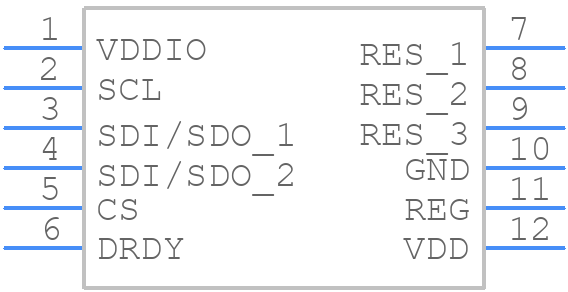

Use the download button to access the L20G20ISTR schematic symbol, PCB footprint, and 3D model.
