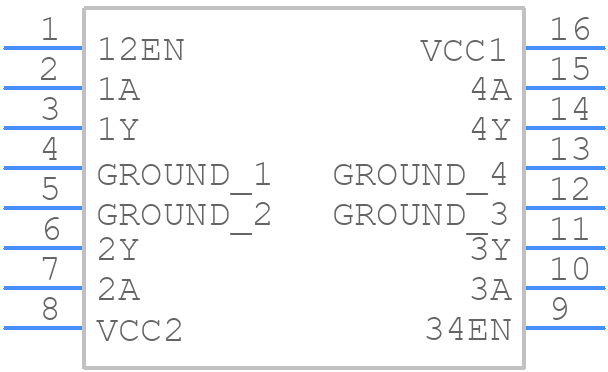

L293NE - Texas Instruments

L293NE Details

• Manufacturer Part Number:

  L293NE

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DIP

• Package Description:

  DIP-16

• Pin Count:

  16

• Country Of Origin:

  Mexico

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Built-in Protections:

  TRANSIENT; THERMAL

• Driver Number of Bits:

  4

• Input Characteristics:

  STANDARD

• Interface IC Type:

  HALF BRIDGE BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e4

• Length:

  19.304 mm

• Number of Functions:

  2

• Number of Terminals:

  16

• Operating Temperature-Max:

  70 °C

• Output Characteristics:

  3-STATE

• Output Current Flow Direction:

  SOURCE AND SINK

• Output Current-Max:

  2 A

• Output Peak Current Limit-Nom:

  2 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Supply Current-Max:

  60 mA

• Supply Voltage-Max:

  7 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Max:

  36 V

• Supply Voltage1-Min:

  4.5 V

• Supply Voltage1-Nom:

  24 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Turn-off Time:

  0.8 µs

• Turn-on Time:

  0.4 µs

• Width:

  7.62 mm
