L482D1013TR - STMicroelectronics

Description: Motor / Motion / Ignition Controllers & Drivers BODY SMARTPOWER

Download L482D1013TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

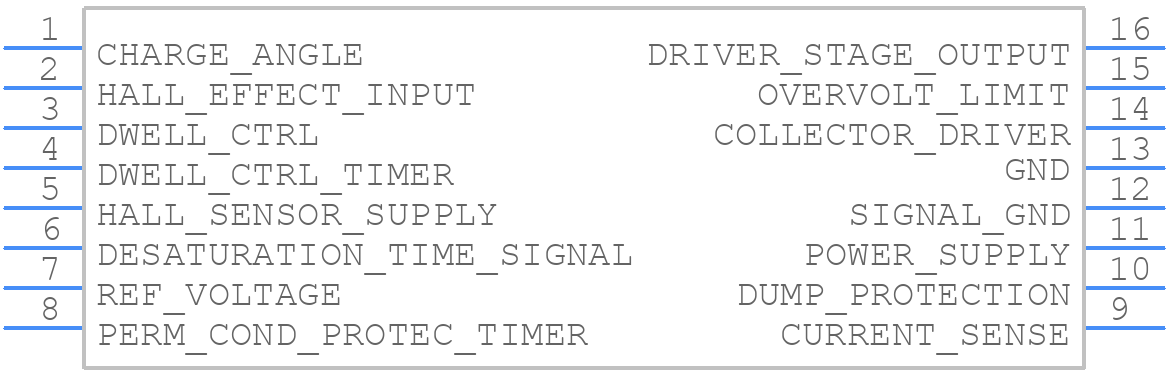

Symbol
L482D1013TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L482D1013TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO16 Narrow
click to zoom
3D Models
L482D1013TR - STMicroelectronics - 3D model - Small Outline Packages - SO16 Narrow
click to zoom

L482D1013TR Details

  • Manufacturer Part Number:

    L482D1013TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SO-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e0

  • Length:

    9.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

L482D1013TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the L482D1013TR should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour connectivity to dissipate heat efficiently. Avoid routing high-current traces near the device to minimize thermal resistance.
  • To ensure reliable operation across the full temperature range, follow the recommended operating conditions, and consider the device's thermal derating. Implement proper thermal management, and ensure the device is not exposed to excessive temperatures, humidity, or mechanical stress.
  • For EMI and EMC compliance, ensure proper PCB layout, decoupling, and filtering. Use a common-mode choke and a differential-mode filter to reduce emissions. Implement a solid grounding strategy, and consider shielding if necessary. Follow the recommended layout and component placement guidelines.
  • To troubleshoot and debug issues, start by verifying the power supply and input voltage. Check for proper pin connections, and ensure the device is not overheating. Use an oscilloscope to analyze the output waveform and identify any anomalies. Consult the datasheet and application notes for guidance on specific troubleshooting techniques.
  • Operating the L482D1013TR beyond the recommended specifications can lead to reduced reliability, decreased performance, and potentially even device failure. Ensure you understand the device's limitations and operate within the recommended specifications to guarantee optimal performance and longevity.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L482D1013TR Overview

Use the download button to access the L482D1013TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L482D, or try a keyword search, such as Other Signal Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
