L4925PD013TR - STMicroelectronics

L4925PD013TR Details

• Manufacturer Part Number:

  L4925PD013TR

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  End Of Life

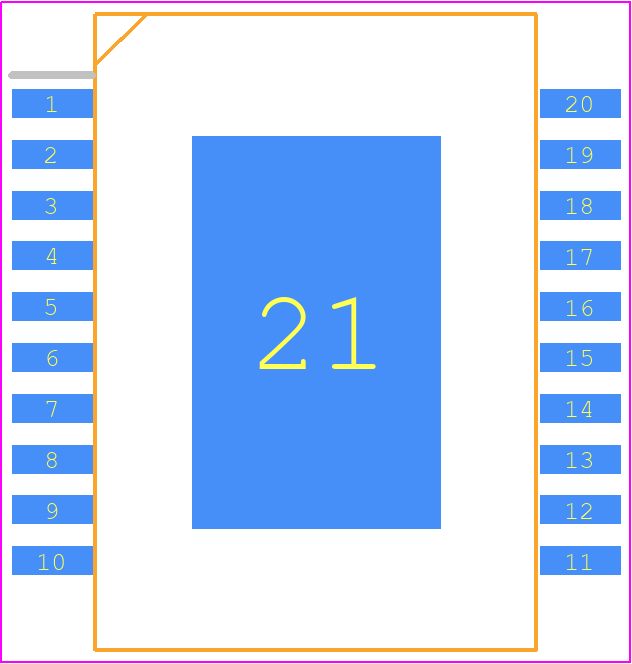

• Part Package Code:

  SOIC

• Package Description:

  POWER, MO-166, SO-20

• Pin Count:

  20

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  1980-01-04

• Manufacturer:

  STMicroelectronics

• YTEOL:

  1

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.6 V

• Dropout Voltage1-Nom:

  0.3 V

• Input Voltage Absolute-Max:

  28 V

• Input Voltage-Max:

  28 V

• Input Voltage-Min:

  6 V

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e3

• Length:

  15.9 mm

• Line Regulation-Max:

  0.01%

• Load Regulation-Max:

  0.05%

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  20

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  0.5 A

• Output Voltage1-Max:

  5.1 V

• Output Voltage1-Min:

  4.9 V

• Output Voltage1-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HSOP

• Package Equivalence Code:

  SOP20,.56

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  245

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  3.6 mm

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  10

• Voltage Tolerance-Max:

  10%

• Width:

  11 mm
