L4995K - STMicroelectronics

Description: LDO Voltage Regulators 5V 500mA low drop Volt Regulator

Download L4995K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

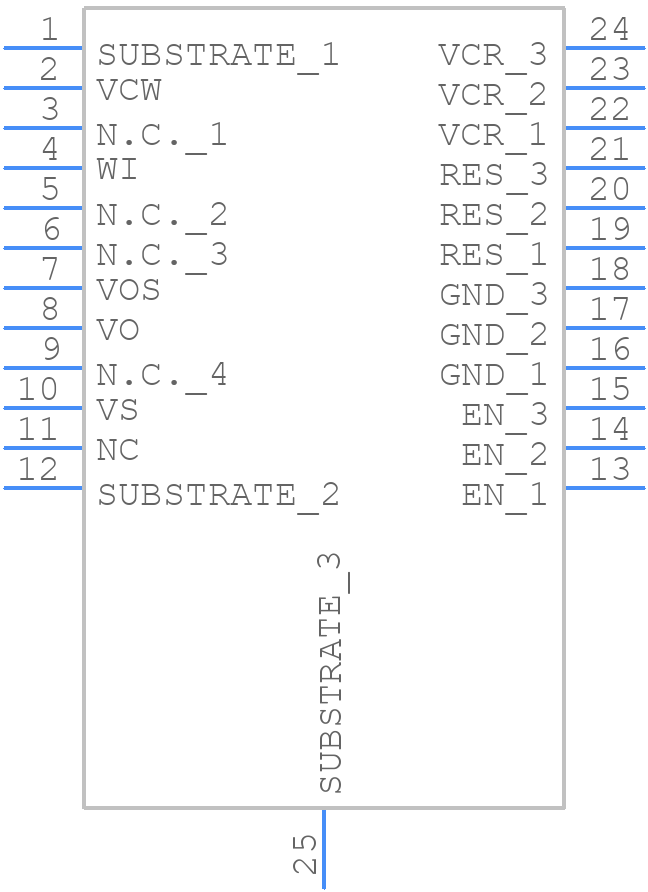

L4995K - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L4995K - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-24 package
click to zoom
3D Models
L4995K - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-24 package
click to zoom

L4995K Details

  • Manufacturer Part Number:

    L4995K

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-24

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.9

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.5 V

  • Dropout Voltage1-Nom:

    0.5 V

  • Input Voltage Absolute-Max:

    40 V

  • Input Voltage-Max:

    31 V

  • Input Voltage-Min:

    5.6 V

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Line Regulation-Max:

    0.025%

  • Load Regulation-Max:

    0.025%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    24

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.9 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SOP12,.25,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.47 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    7.5 mm

L4995K Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4101, which includes guidelines for component placement, thermal management, and routing to minimize noise and electromagnetic interference.
  • The output capacitor selection depends on the output voltage, output current, and ripple requirements. A general guideline is to choose a capacitor with a minimum capacitance of 10uF, a voltage rating of at least 1.5 times the output voltage, and a low ESR (Equivalent Series Resistance) to minimize voltage ripple.
  • The L4995K is rated for operation from -40°C to 150°C, but the maximum ambient temperature range depends on the specific application and the thermal management design. It's recommended to consult the thermal design guidelines in the datasheet and application notes to ensure reliable operation.
  • Yes, the L4995K is qualified for automotive and high-reliability applications, meeting the requirements of AEC-Q100 and IATF 16949. However, it's essential to consult the specific qualification documents and follow the recommended design and testing guidelines to ensure compliance with the relevant standards.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4101, which covers common issues, their causes, and recommended solutions. Additionally, the datasheet and application notes provide guidelines for debugging and testing the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L4995K Overview

Use the download button to access the L4995K schematic symbol, PCB footprint, and 3D model.
