L5963DN-EHT - STMicroelectronics

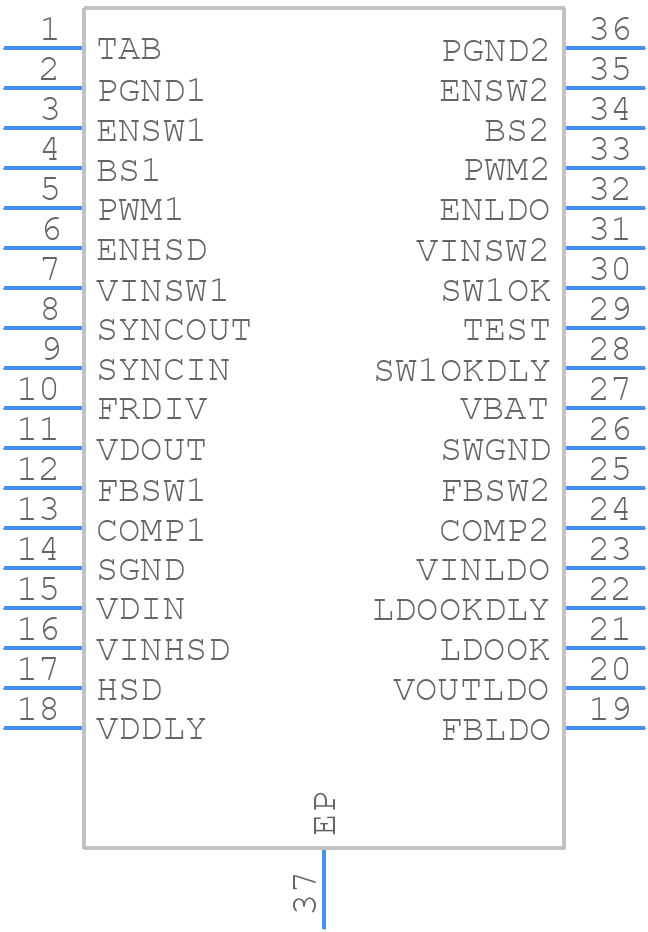

L5963DN-EHT Details

• Manufacturer Part Number:

  L5963DN-EHT

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SSO-36

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  36 Weeks

• Date Of Intro:

  2017-06-19

• Manufacturer:

  STMicroelectronics

• YTEOL:

  8

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  26 V

• Input Voltage-Min:

  3.5 V

• Input Voltage-Nom:

  14.4 V

• JESD-30 Code:

  R-PDSO-G36

• JESD-609 Code:

  e3

• Length:

  10.3 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  2

• Number of Terminals:

  36

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  3 A

• Output Voltage-Min:

  1 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HSSOP

• Package Equivalence Code:

  SSOP36,.4,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  2.45 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  2000 kHz

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Width:

  7.5 mm
