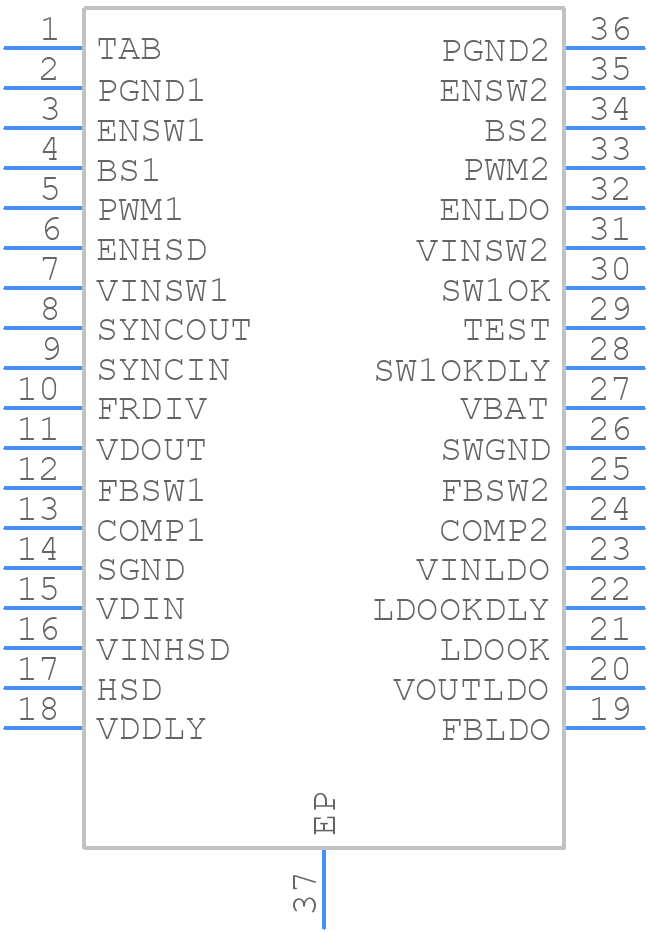

L5963DN-EHX - STMicroelectronics

L5963DN-EHX Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  STMicroelectronics provides a recommended PCB layout in the application note AN4553, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
• How do I select the correct input capacitor for the L5963DN-EHX?
  The input capacitor selection depends on the input voltage, ripple current, and ESR requirements. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and an ESR less than 1 ohm. X7R or X5R ceramic capacitors are suitable options.
• What is the maximum allowed voltage drop across the internal FETs?
  The maximum allowed voltage drop across the internal FETs is not explicitly stated in the datasheet. However, as a general guideline, it's recommended to keep the voltage drop below 1V to ensure reliable operation and minimize power losses.
• Can I use the L5963DN-EHX in a high-temperature environment?
  The L5963DN-EHX is rated for operation up to 150°C, but it's essential to consider the derating curves and thermal management to ensure reliable operation. Consult the datasheet and application notes for guidance on high-temperature operation.
• How do I troubleshoot issues with the L5963DN-EHX, such as oscillations or instability?
  To troubleshoot issues, start by verifying the PCB layout, component selection, and input/output connections. Check for proper decoupling, filtering, and thermal management. Consult the application notes and STMicroelectronics' support resources for guidance on debugging and troubleshooting.
