L5963Q-V0Y - STMicroelectronics

Description: Automotive dual monolithic switching regulator with LDO and HSD

Download L5963Q-V0Y Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

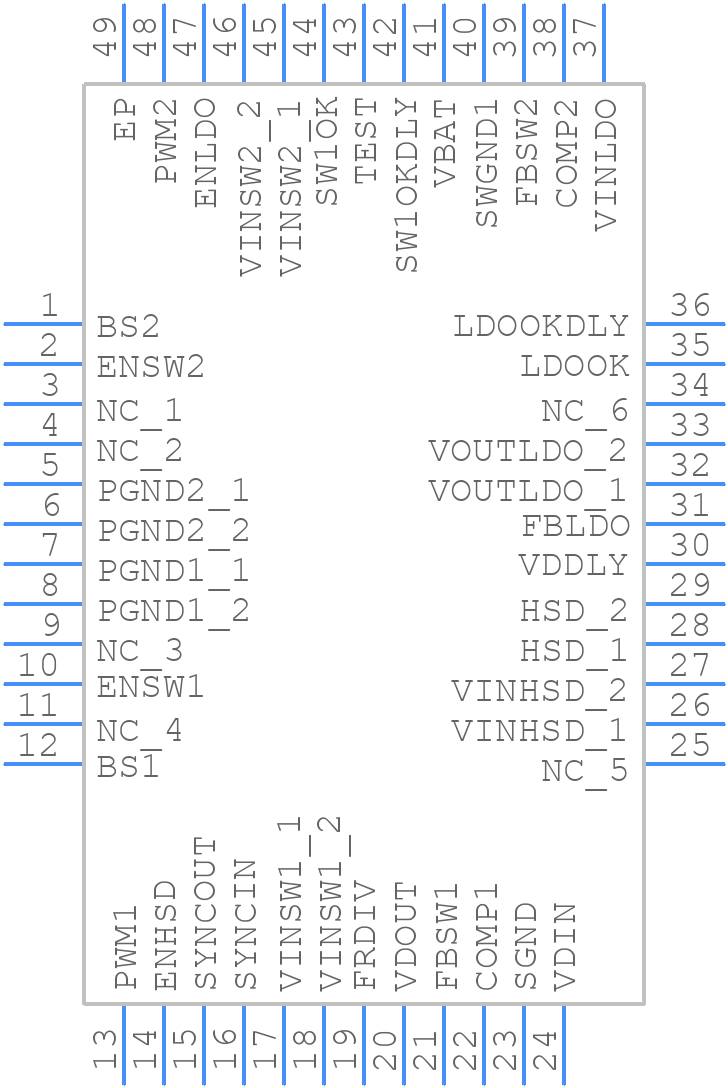

L5963Q-V0Y - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L5963Q-V0Y - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L5963Q-V0Y
click to zoom
3D Models
L5963Q-V0Y - STMicroelectronics - 3D model - Quad Flat No-Lead - L5963Q-V0Y
click to zoom

L5963Q-V0Y Details

  • Manufacturer Part Number:

    L5963Q-V0Y

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFQFPN-48

  • Manufacturer Package Code:

    VFQFPN 48 7x7x1.0

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    26 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    14.4 V

  • JESD-30 Code:

    S-PQCC-N48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Min:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.05 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2000 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7 mm

L5963Q-V0Y Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a PCB layout with a large copper area connected to the exposed pad (EP) of the L5963Q-V0Y to improve thermal dissipation. A minimum of 2oz copper thickness and a thermal via array under the EP are recommended.
  • To ensure the L5963Q-V0Y operates within the SOA, monitor the device's junction temperature (TJ), input voltage (VIN), output current (IOUT), and output voltage (VOUT). Use the datasheet's SOA graph to determine the maximum allowed values for each parameter.
  • STMicroelectronics recommends using a low-ESR ceramic capacitor (X5R or X7R dielectric) with a value between 4.7µF and 10µF for the input capacitor (CIN). This helps to filter out high-frequency noise and ensure stable operation.
  • To calculate the output voltage ripple, use the following formula: ΔVOUT = (IOUT * ESL) / (COUT * fSW), where ESL is the equivalent series inductance of the output capacitor (COUT), IOUT is the output current, and fSW is the switching frequency.
  • STMicroelectronics recommends using a low-ESR ceramic capacitor (X5R or X7R dielectric) with a value between 10µF and 22µF for the output capacitor (COUT). This helps to filter out high-frequency noise and ensure stable operation.
